Waterproof Storm Cover for Jayco Expanda (Rear)

Designed for Hard Lid Jayco Expanda Models from 2016+

RRP $129.95
SAVE $20.00 (15%)

or 4 payments of $27.49 with Learn more

Sold Out

Calculate Shipping

Waterproof Storm Cover for Jayco Expanda 2016+ (Rear End)

Note: This sale is for the Rear / Back End Bed End Cover only. If you require front and back see our listing which includes both.

This waterproof bed end fly storm cover provides all-weather protection for your front fold-out bed end, keeping the canvas and bedding dry on rainy days.

Designed for the Jayco range of Caravan & Pop Top Expandas, Base Stations & Work n Plays from 2016+ this waterproof bed end fly utilizes the same fabric as Camp Smart's popular range of XD Waterproof Privacy Screens. Made out of Oxford Woven Polyester with a PU coating the bed end fly is lightweight but extremely durable. The Oxford fabric weave provides better strength and durability than standard plain weaves and is often used for heavier-duty fabrics. This allows for a thinner and lightweight product, up to 80% lighter than canvas. The lightweight and compact design means the storm cover can be stowed away neatly when not in use in even the smallest of caravan boots.

The cover requires sail track (not included) to be installed around the bottom edges of the hard lid. If not pre-installed we do have plastic sail track sets available separately. The cover does include a set of press studs to help attach the cover back to the Expanda on the sides. It also includes 2 cut-out sections around the locking mechanism, allowing it to be folded up and left on when packing up.

Key Features:

  • Designed for the 2016+ Jayco Expanda Pop Top and Caravan models
  • Oxford Woven Polyester with a PU coating

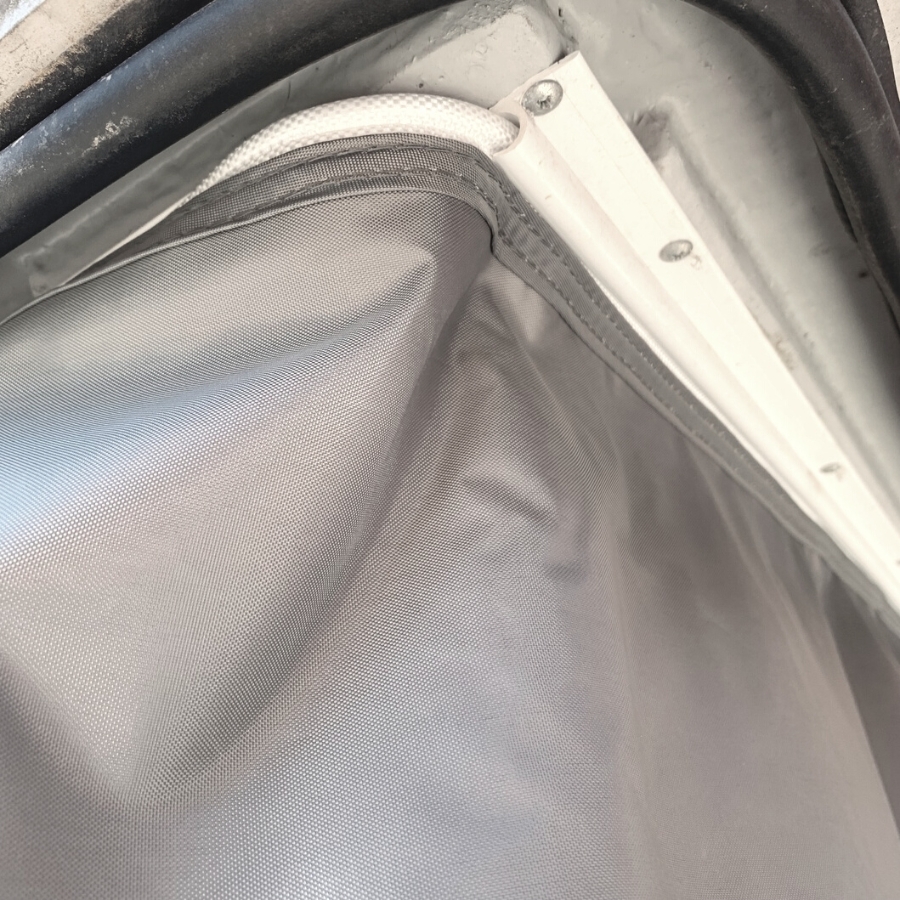

  • 6mm keder rope spline stitched into the top edge allowing it to be installed in sail track (Note sail track is not included).
  • Hemmed and double-stitched bottom edges.

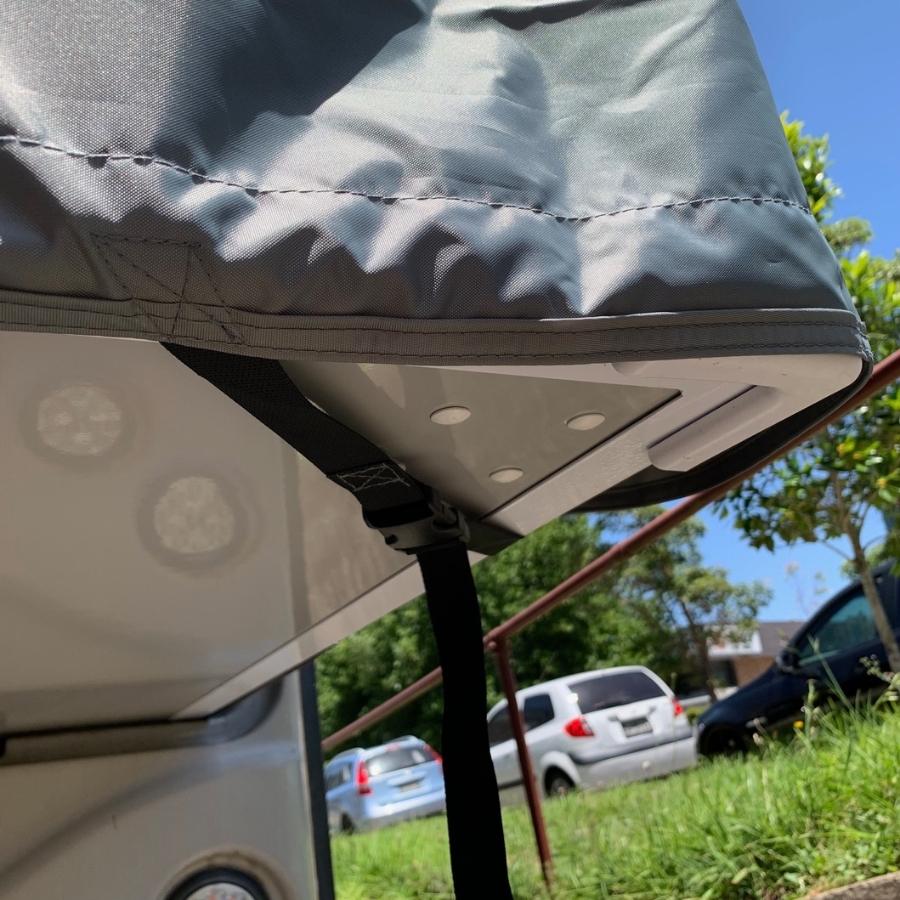

  • Includes bottom corner straps with buckles to help keep secured.

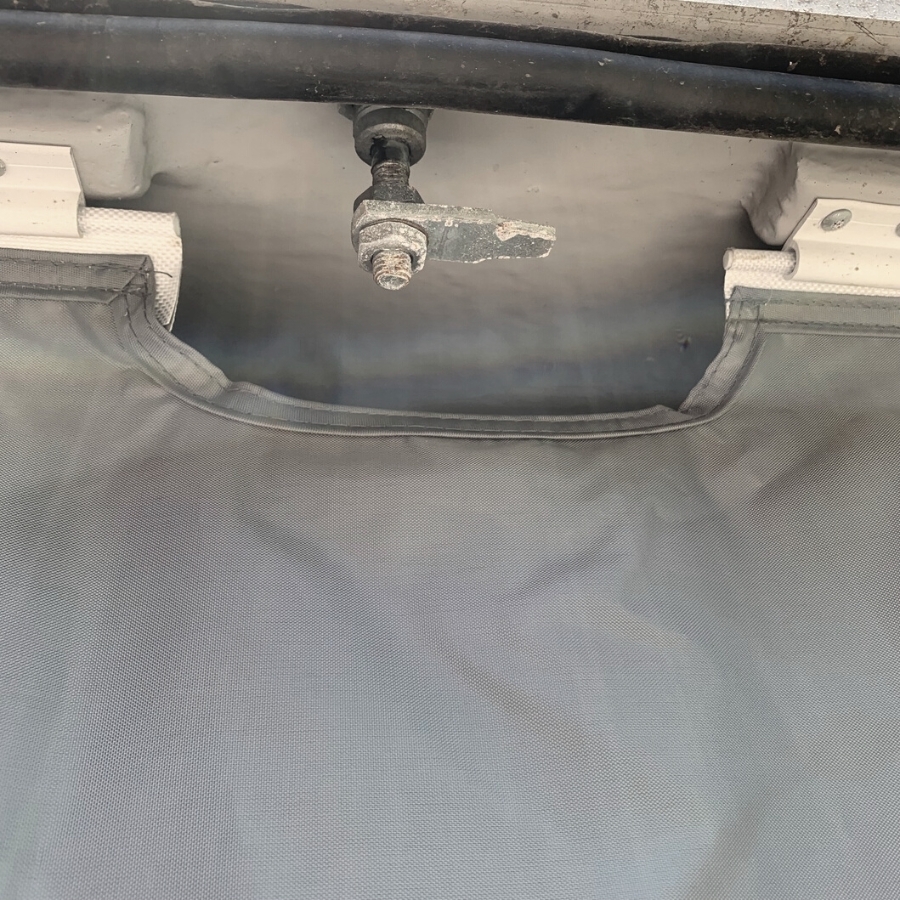

  • 2 integrated cut-out sections where the locking mechanism is located, enabling the cover to left on when packing away.
  • Attaches to the hard roof lid of your rear side expanda bed end, providing sun & weather protection
  • Includes 4 press studs for attaching the sides. Another 2 are included to press stud the cover under the lid when packing away.
  • Storage carry bag included.

Important Installation Details:

  • Please note installation requires sail track to be installed on the hard lid. The sail track is not included in this kit. Approx. 4m of sail track is required per side.
  • For hard lid Expandas from 2008-2014. Please note the fit is not exact & installation may require modifications. Also note the rubber seal on the van lid may need to be taken off and then replaced or re-installed.
  • The 2015 Pop Top Expandas have a single-skin & installation on these is difficult.
  • Contact your local trimmer or caravan repairer for a quote on installation.

All items in our store are from reputable Australian suppliers and are covered by a 12-month warranty for faults and defects.

We operate in accordance with Australian Consumer Law.

Please choose carefully.

It is the customers' responsibility to read the terms and conditions prior to purchasing and to determine if a product is right for their use and vehicle.

Damage by misuse is not warrantable.




Model # CSBF502
Barcode # Does not apply
Brand Campsmart
Shipping Weight 1.2000kg
Shipping Width 0.360m
Shipping Height 0.080m
Shipping Length 0.350m
Shipping Cubic 0.010080000m3
Type New
