Size Guide for Ordering Caravan Privacy Screens


The Guide below explains how to measure your awning for a screen.


Please note: There are two ways to measure for fitting a caravan privacy screen. Read the table below and order according to the way you did your measurements.

By Awning Size:

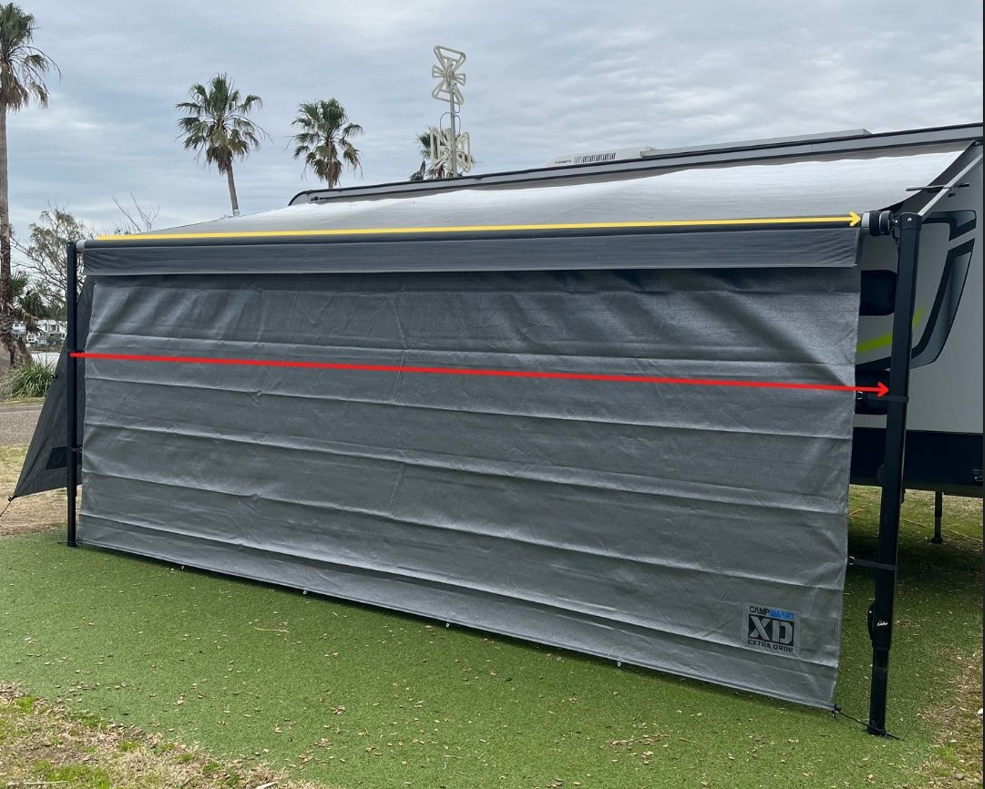

  • Roll-out awnings are measured from metal post to metal post (see image at the bottom of this page with red line)

By Roller bar size:

  • Roller bars are shorter than the awnings' full size (see the yellow line on the image at the bottom of this page)



Roll Out Awning Screen Guide



Screen Size

** Awning size is measured from post to post**



D-rings

Type of Awning

2.8m XD

                       Suits 10ft (3m awning)

3 x D-Rings

Roll out awning

3.1m XD

                       Suits 11ft (3.35 Awning)

4 x D-Rings

Roll out awning

3.4m XD

                       Suits 12ft (3.66m Awning)

4 x D-Rings

Roll out awning

3.7m XD

                       Suits 13ft (3.96m Awning)

5 x D-Rings

Roll out awning

4.0m XD

                       Suits 14ft (4.27m Awning)

5 x D-Rings

Roll out awning

4.3m XD

                       Suits 15ft (4.57m Awning)

5 x D-Rings

Roll out awning

4.6m XD

                       Suits 16ft (4.88m Awning)

5 x D-Rings

Roll out awning

4.9m XD

                       Suits 17ft (5.18m Awning)

6 x D-Rings

Roll out awning

5.2m XD

                       Suits 18ft (5.49m Awning)

6 x D-Rings

Roll out awning

5.5m XD

                       Suits 19ft (5.79m Awning)

6 x D-Rings

Roll out awning

5.8m XD

                       Suits 20ft (6.10m Awning)

6 x D-Rings

Roll out awning



Fiamma, European and Box Awning Screen Size Guide





Screen Size

*Fabric*



European Style Box Awnings







D-rings



Type of Awning

2.45m XD

For a 2.6m awning

(3x Along Bottom)

Fiamma / Thule / Box / Cassette / European Style



2.85 XD





For 3m awning

3 x D-Rings

Fiamma / Thule / Box / Cassette / European Style

3.35m XD

 For 3.5m awning

 4x D-Rings

Fiamma / Thule / Box / Cassette / European Style

3.85m XD

 For 4.0m Box awning

5x D-Rings

Fiamma / Thule / Box / Cassette / European Style

4.35m XD

 For 4.5m Box awning

5x D-Rings

Fiamma / Thule / Box / Cassette / European Style
