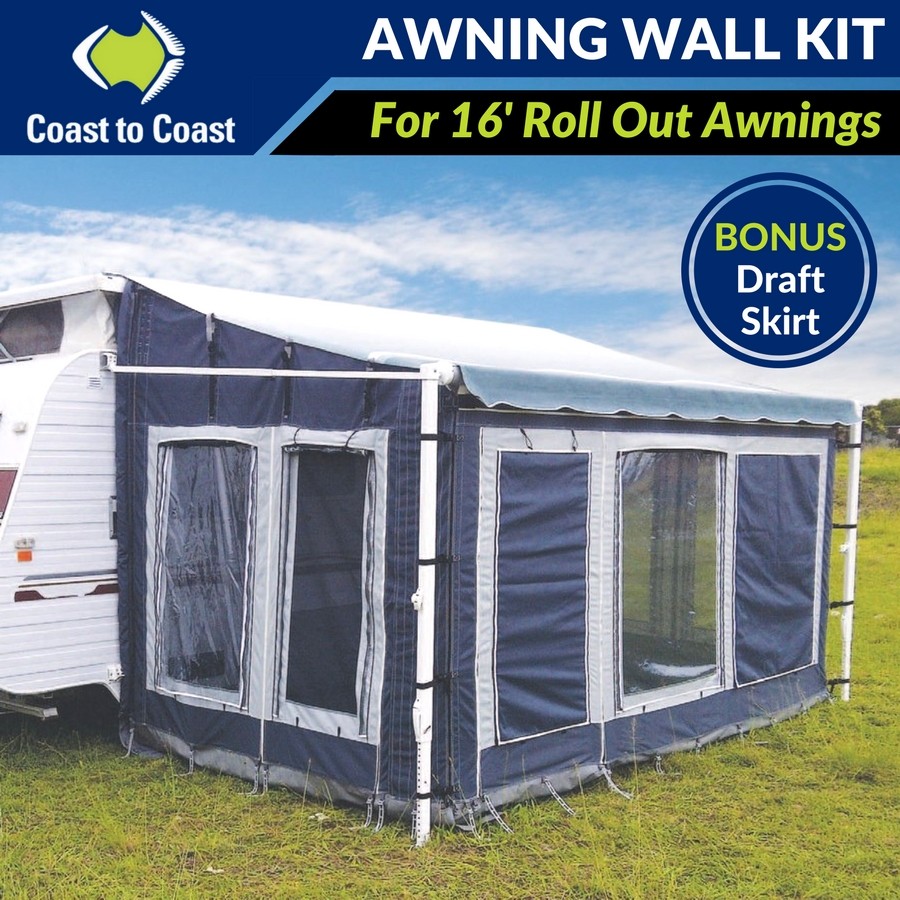

COAST AWNING WALL KIT TO SUIT 16' ROLLOUT AWNINGS
An inexpensive alternative for Pop Top, Expanda and Caravan owners to extend your living space whilst on holiday.


Suitable for rollout awnings (such as Carefree and Dometic).

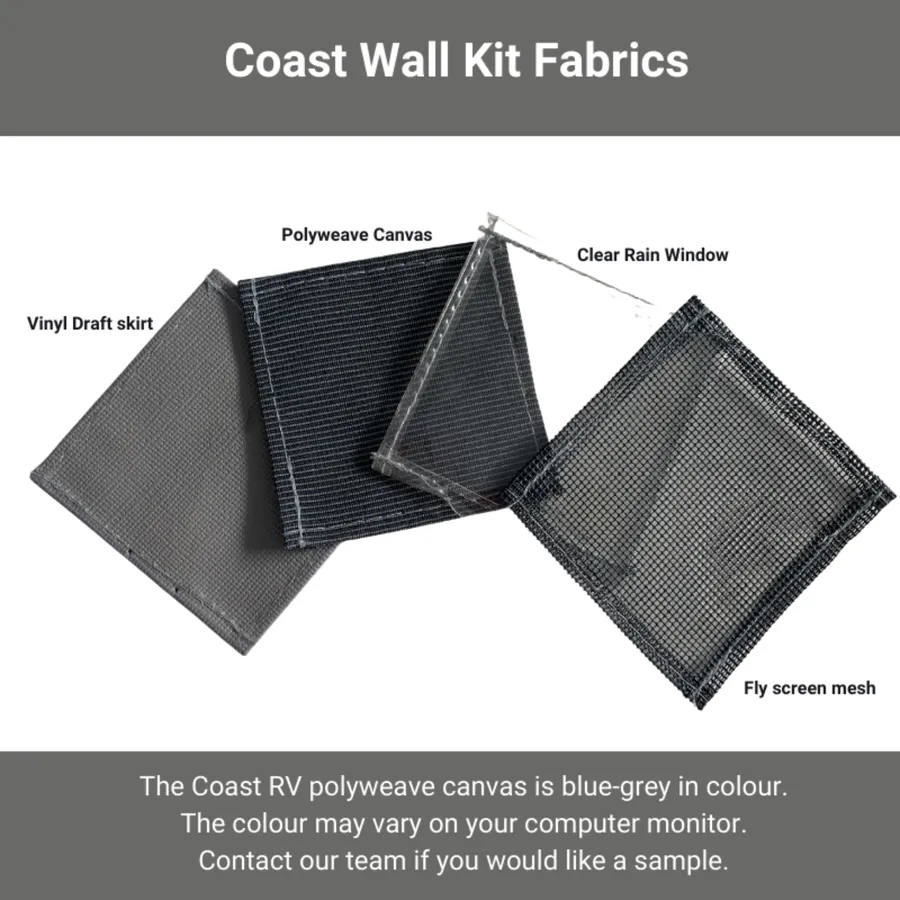

Made from polyester weaved canvas - which is easy to wash, dries quickly and is known for its strength and durability. It is resistant to stretching, shrinking, wrinkles, mildew, scratching and even some chemicals.

Features:
  • Windows with 3 layers - outer canvas, clear PVC rain layer and a fly screen
  • to suit most rollout awnings
  • Draught skirt and wheel cover included.
  • Includes with three doors (one on each wall), giving you flexibility on which side to open up for access



Specifications:
  • Made from Polyester yarns (0.46mm thick).
  • The windows are made from clear PVC with a 0.27mm thickness
  • Mud flaps are manufactured from a non-fraying, grey PVC with webbing.
  • The draft and wheel covers are made from a lightweight grey PVC with webbing.
  • Easy to wash and dry.
  • Range of positions from 2.7m (9’’) in height (suiting the Jayco Outback models) to projections of up to 2.4m (8’’).
  • Sidewalls are hung and supported by telescopic rafter poles
Measurement Note:

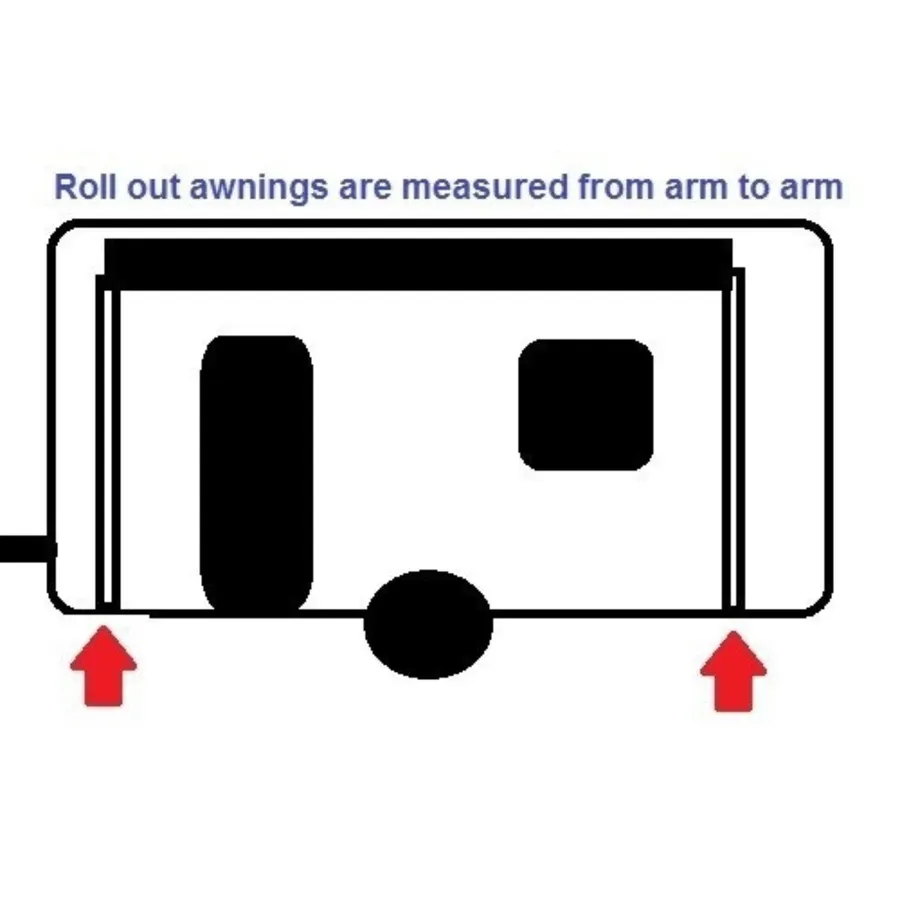

Roll-out awnings are measured by the complete size - From one metal awning arm to the other (see our picture reference).
When measuring for size you need to measure from one awning arm to the other. Not just the fabric width.
Generally speaking, a roll-out awning will be approximately 2 to 3 feet shorter than the body length of the Caravan or Pop Top, but please measure to be sure.
Installation Instructions:

This is a DIY kit – the pdf instructions are on the product page.

Please read them before purchasing to ensure you are aware of the components and set-up. Relatively straightforward for a general handy person, you could also see a quote from a caravan trimmer or repairer if you are not a handy person.

Note:

This kit does not use the anti-flap kit method of attachment. Please see our Aussie Traveller Annexes if you would like to use the AFK method.
Refer to our warranties & returns page for terms and conditions.


SKU 150-03040
Model # 150-03040
Barcode # Does not apply
Brand Coast to Coast RV
Colour Grey
Shipping Weight 37.5000kg
Shipping Width 0.220m
Shipping Height 0.330m
Shipping Length 1.750m
Shipping Cubic 0.127050000m3
Assembled Length 4.445m
Assembled Height 2.743m
Type New
Location Code 1I3

Help other users shop smarter by writing reviews for products you have purchased.

Write a review

All items in our store are from reputable Australian suppliers and are covered by a 12-month  warranty for faults and defects.

Products must be used correctly and for the function they were designed for. Damage by customer misuse is not warrantable.

For full warranty information, visit our warranty page - Click here.

If you would like to submit a warranty claim, please submit a support ticket on our Customer Support Portal.

Click here to visit the portal

Due to the high incidence of online fraud, you will be required to provide proof of any warranty claims and may be required to return the item for assessment.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.



Features:

  • Windows with 3 layers - outer canvas, clear PVC rain layer and a fly screen
  • to suit most rollout awnings
  • Draught skirt and wheel cover included.
  • Includes with three doors (one on each wall), giving you flexibility on which side to open up for access

Specifications:

  • Made from Polyester yarns (0.46mm thick).
  • The windows are made from clear PVC with a 0.27mm thickness
  • Mud flaps are manufactured from a non-fraying, grey PVC with webbing.
  • The draft and wheel covers are made from a lightweight grey PVC with webbing.
  • Easy to wash and dry.
  • Range of positions from 2.7m (9’’) in height (suiting the Jayco Outback models) to projections of up to 2.4m (8’’).
  • Sidewalls are hung and supported by telescopic rafter poles
