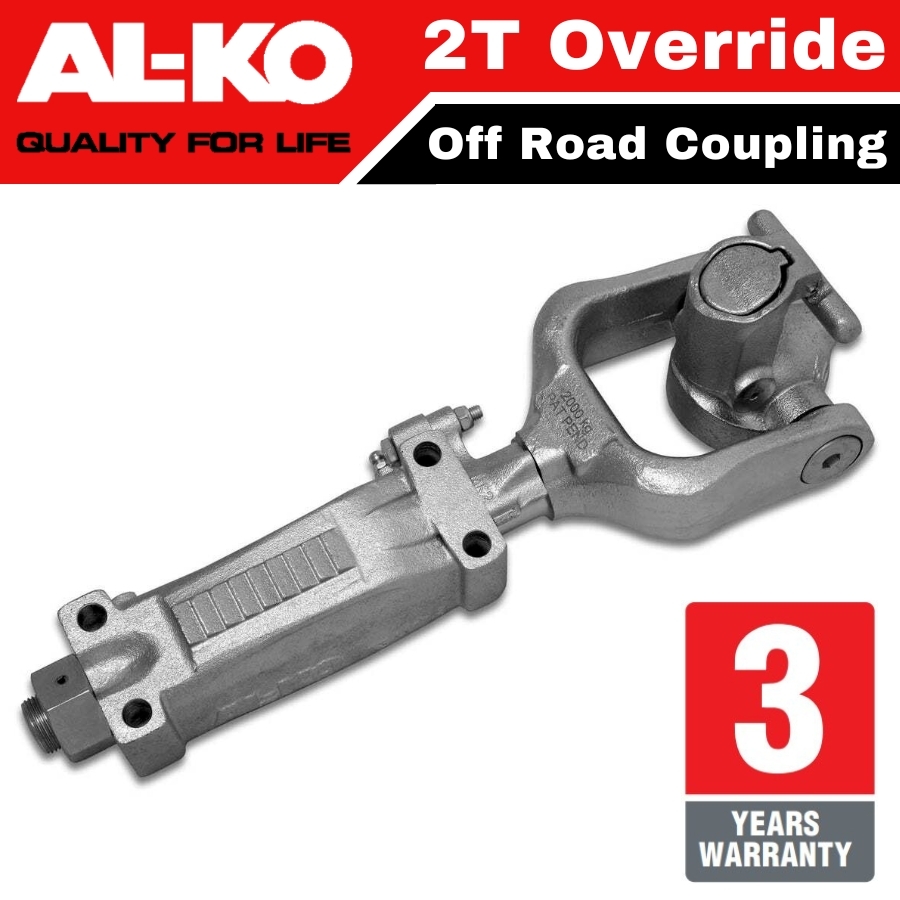

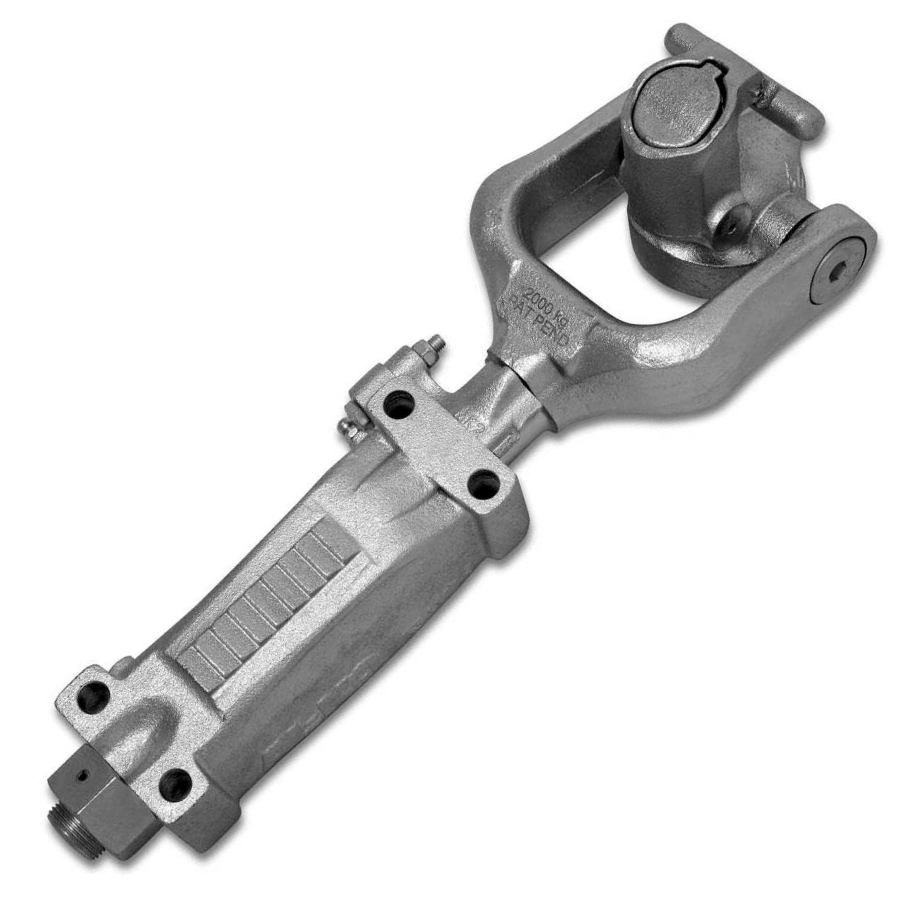

AL-KO 2T Off Road Coupling - Override to suit Hydraulic / Mechanical Brakes

Engineered by AL-KO in Australia specifically for extreme off-road adventure, the new AL-KO Off-Road Ball Coupling incorporates extreme vertical and horizontal articulation as well as a quick & easy hitching design that requires no pin or hole alignment.

When a standard coupling is used for rough off-road use, the Australian Standard degree of articulation (or angles of available movement) may be insufficient. This articulation problem was solved by introducing AL-KO’s “Original” Off-Road Ball Coupling.

AL-KO’s Australian engineering team have since developed a new generation product that provides further improved ease of use and durability for extreme off-road applications. The new Off-Road Ball Coupling is made from high-quality materials designed to endure serious off-road use and provide you with the confidence you need to take your rig into even the most remote parts of Australia. Designed for use with a standard 50mm ball.

Specifications:

  • Suits brake type: Hydraulic / Mechanical
  • Suits 50mm Ball
  • Capacity: 2000 kg
  • Centre of ring to first hole 149.5mm
  • Mounting Pattern: 184mm x 54mm
  • Hole Diameter: 13.5mm
  • Surface Finish: Zinc plated

Key Features at a Glance:

  • Extreme articulation (vertically and horizontally) is suitable for extreme off-road towing.
  • Overcomes the articulation limitations of the traditional ball coupling.
  • Tough zinc-plated components. Built for serious off-road use.
  • Available in fixed and override configurations.
  • Suitable for retrofit to existing caravans and camper trailers.
  • Can be used with level rides for on-road towing.
  • Uses the standard tow vehicle set up for the ultimate convenience.
  • Designed to clear most 4wd tailgates.
  • No difficult pin or hole alignment as is associated with most pin-type off-road couplings.
  • Engineered by AL-KO – the global leader in caravan chassis components to specifically suit Australian conditions.
  • Level rides should be removed when towing off-road to allow for the articulation of the coupling.

SKU 619200
Model # 619200
Barcode # Does not apply
Brand AL-KO
Colour Grey
Shipping Weight 11.0000kg
Shipping Width 0.250m
Shipping Height 0.150m
Shipping Length 0.460m
Shipping Cubic 0.017250000m3
Assembled Length 0.451m
Assembled Height 0.112m
Assembled Width 0.100m
Type New
Location Code 51C2
