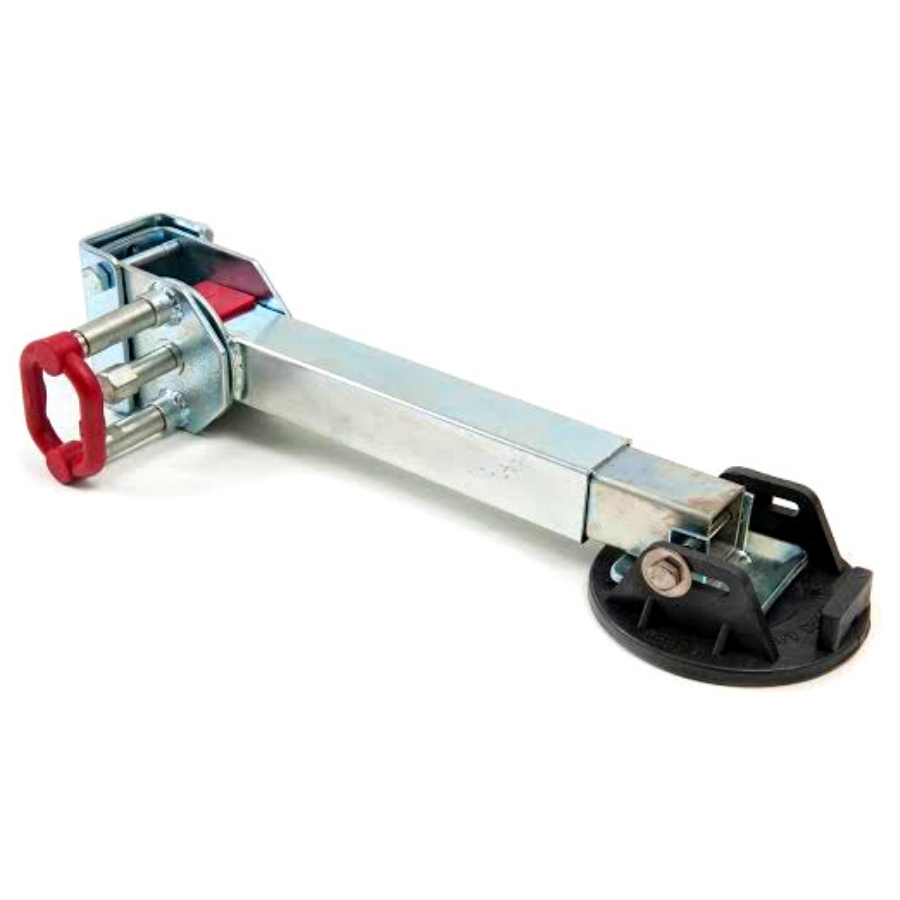

AL-KO Drop Down Corner Steady 590mm

ALKO Corner Steadies are designed to stabilize a trailer or caravan when stationary. This zinc plated 590mm drop down corner steady has a hex drive and comes complete with a bigfoot making it ideal for softer ground. The Alko leg comes with a mounting plate which can be welded on allowing the corner steady unit to be then bolted to the bracket (with included bolts). This makes it easily removed & swapped over if required.

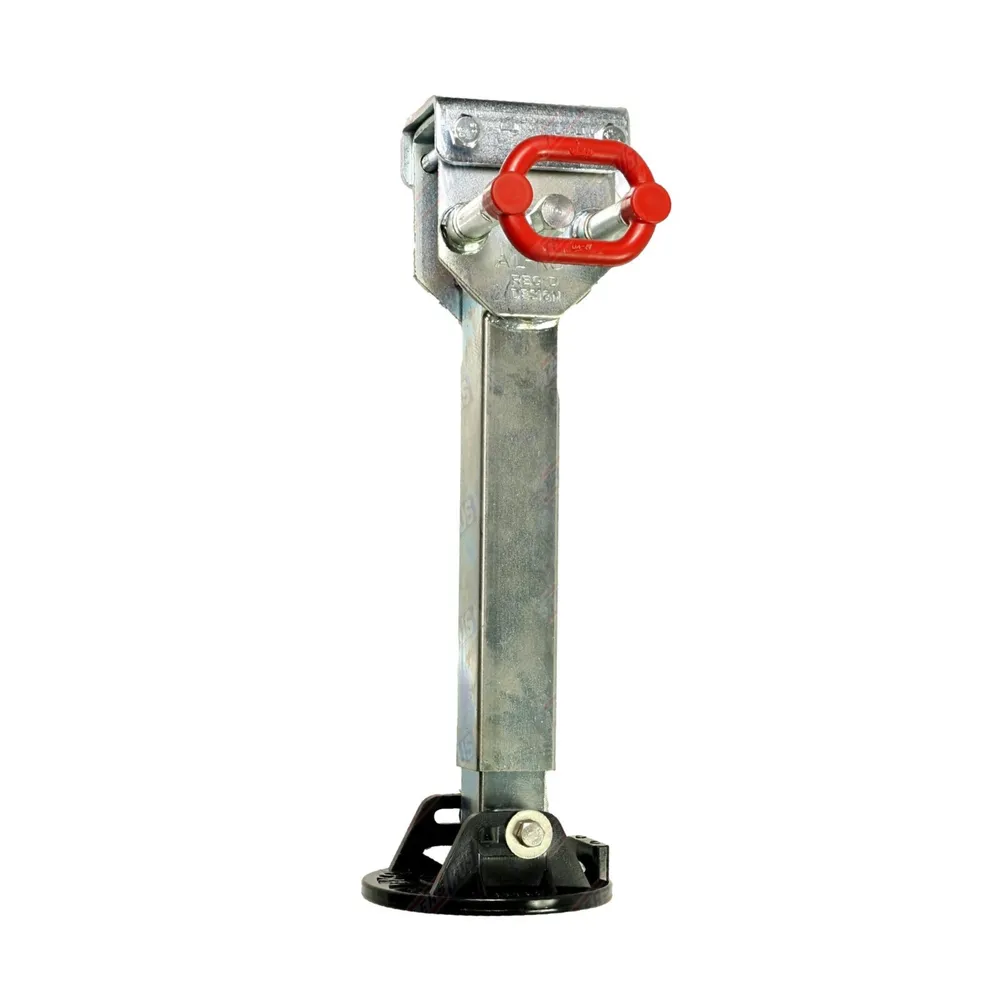

The "Drop-Down" style steadies can be swung from the horizontal travelling position to different angles including the optimum position of vertical. The corner steady then requires only a small amount of winding to steady the caravan, pop top or camper trailer. The minimum vertical height is 420mm although the steadies can be set down on an angle when local ground levels vary and don't allow full vertical extension. The maximum height is 590mm (Including the Big Foot & Mounting Bracket).

AL-KO corner steadies have been tested and meet the requirements of the Caravan Industry Association Australia (CIAA), the Australian controlling body for caravan manufacturing standards.

Key Features & Specifications:

  • 590mm version is suitable for most On-Road RVs

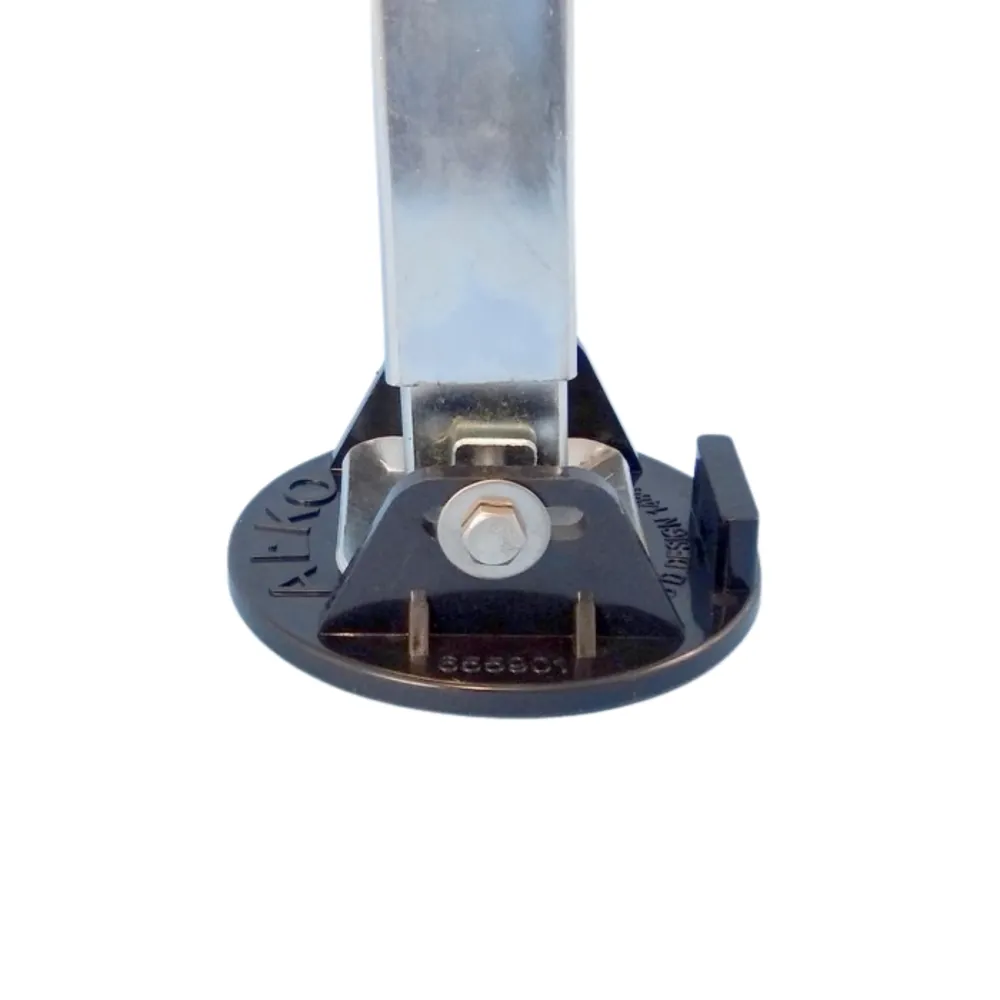

  • Includes fitted Alko Bigfoot
  • Zinc plated
  • 590mm in Height fully extended (Bigfoot Included)
  • 420mm minimum vertical height (Bigfoot Included)
  • Leg operates at various angles allowing for smaller height
  • Stowed height is 125mm

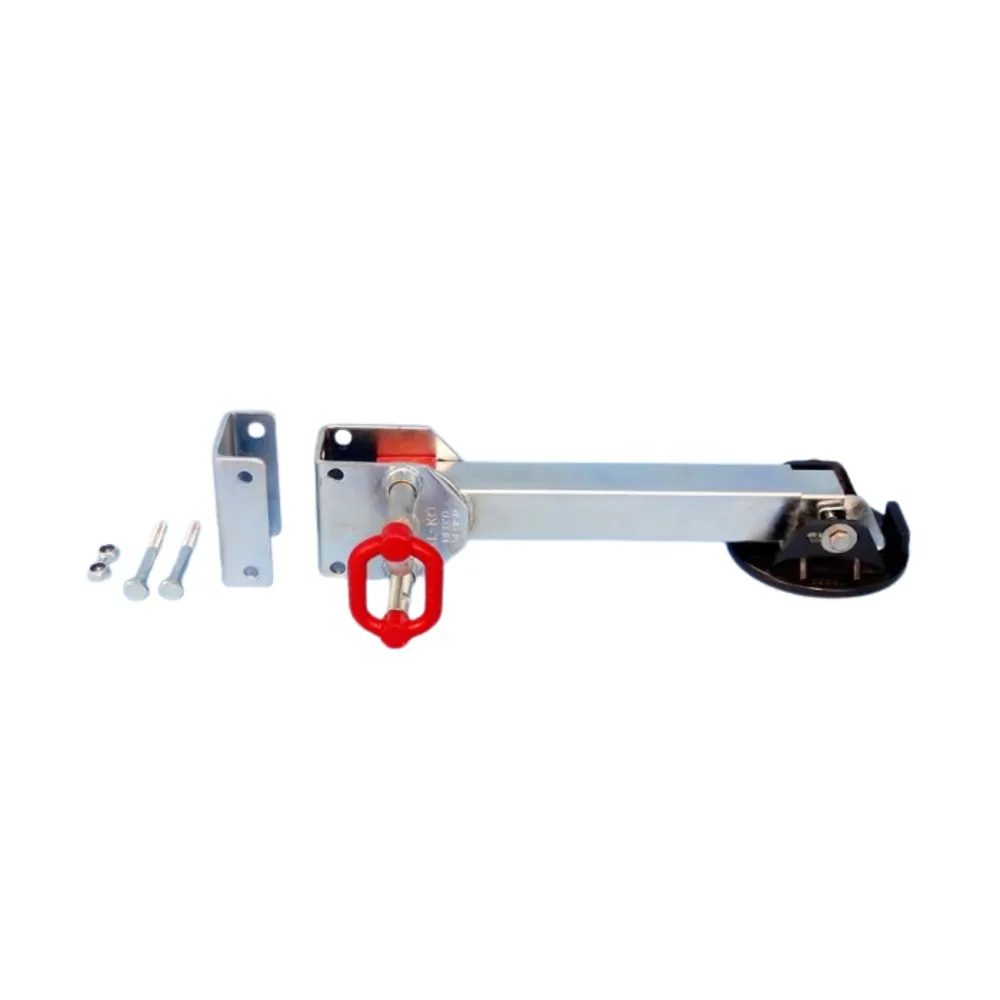

  • Mounting bracket included for chassis installation.

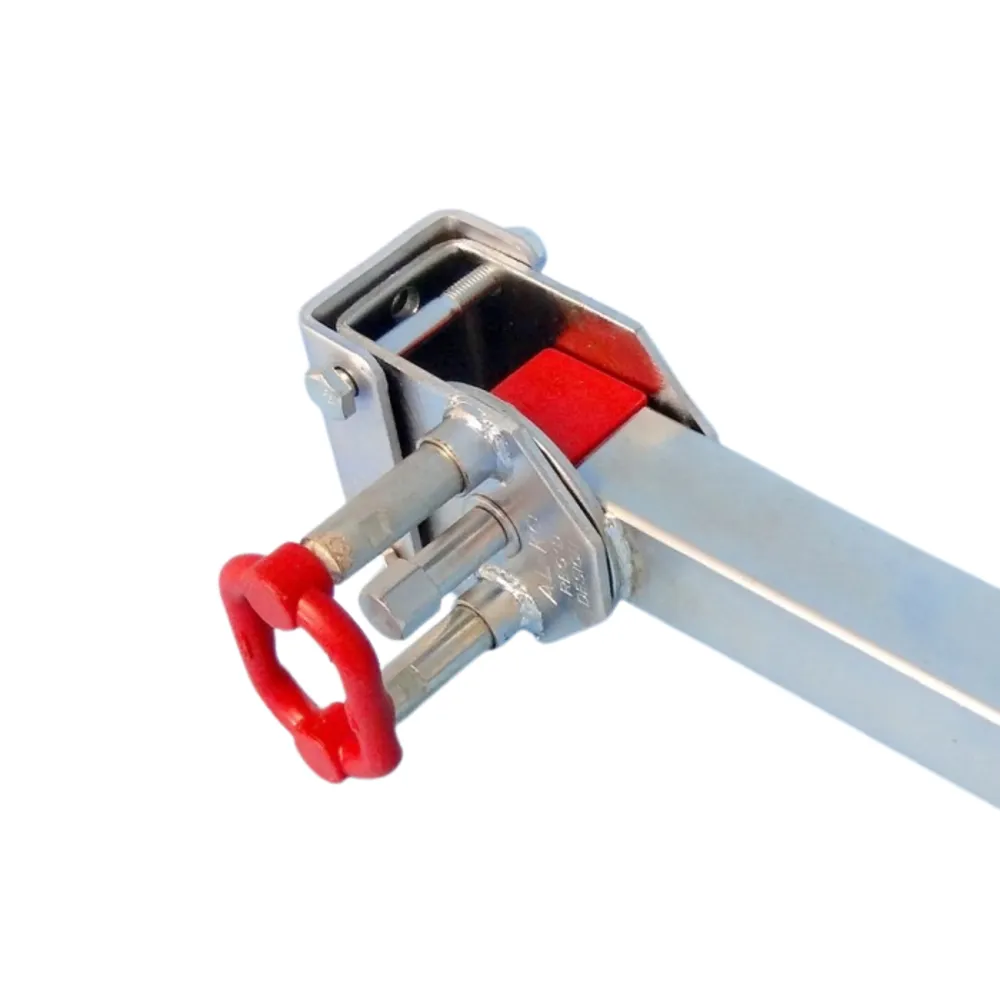

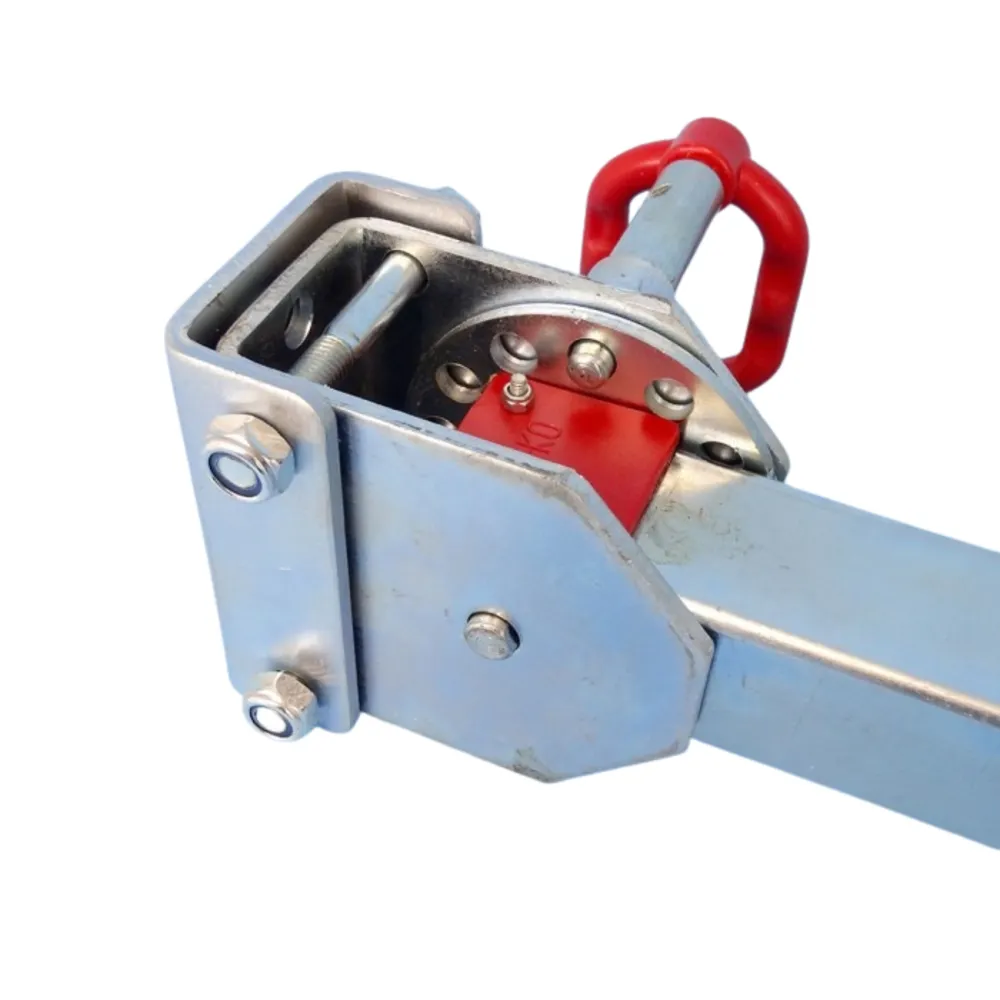

  • Bolt on installation for legs to mounting bracket for easy changeover (Two Bolt Hole 80 mm Centres – Leg Top Section Measures L 100 mm x W 65 mm)
  • 19-mm standard hex wind nut
  • Features smooth grip handle for comfort

Notes:

  • Corner steadies are not designed to be used as a jack or as the means of lifting the trailer or caravan off the ground. They are designed to stabilize the trailer or caravan when stationary.
  • The 590mm sized unit is the smallest in terms of height which generally suits on-road touring Caravans. For taller Off-Road models, the 740mm version may be more suitable (but please measure to be sure).

See our full range of AL-KO products.

SKU 654859
Model # 654859
Barcode # 9319236123614
Brand AL-KO
Colour Silver
Shipping Weight 5.3000kg
Shipping Width 0.200m
Shipping Height 0.120m
Shipping Length 0.520m
Shipping Cubic 0.012480000m3
Type New
Location Code BOX 1

Write a review


I brought 4 of these for my Coromal 505 Pop Top. Very happy with the purchase. Fast shipping. Will fit them as soon as I have time. Camp Smart made the process easy and will use again


Very happy.


ALKO has the name in quality caravan accessories, and the rear stabiliser I bought was no exception. Replacing a stabiliser I accidentally destroyed going through a steep cutting, the unit was easily installed with two bolts and it works perfectly.

All items in our store are from reputable Australian suppliers and are covered by a 12-month  warranty for faults and defects.

Products must be used correctly and for the function they were designed for. Damage by customer misuse is not warrantable.

For full warranty information, visit our warranty page - Click here.

If you would like to submit a warranty claim, please submit a support ticket on our Customer Support Portal.

Click here to visit the portal

Due to the high incidence of online fraud, you will be required to provide proof of any warranty claims and may be required to return the item for assessment.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.



Key Features & Specifications:

  • 590mm version is suitable for most On-Road RVs
  • Includes fitted Alko Bigfoot
  • Zinc plated
  • 590mm in Height fully extended (Bigfoot Included)
  • 420mm minimum vertical height (Bigfoot Included)
  • Leg operates at various angles allowing for smaller height
  • Stowed height is 125mm
  • Mounting bracket included for chassis installation.
  • Bolt on installation for legs to mounting bracket for easy changeover (Two Bolt Hole 80 mm Centres – Leg Top Section Measures L 100 mm x W 65 mm)
  • 19-mm standard hex wind nut
  • Features smooth grip handle for comfort
