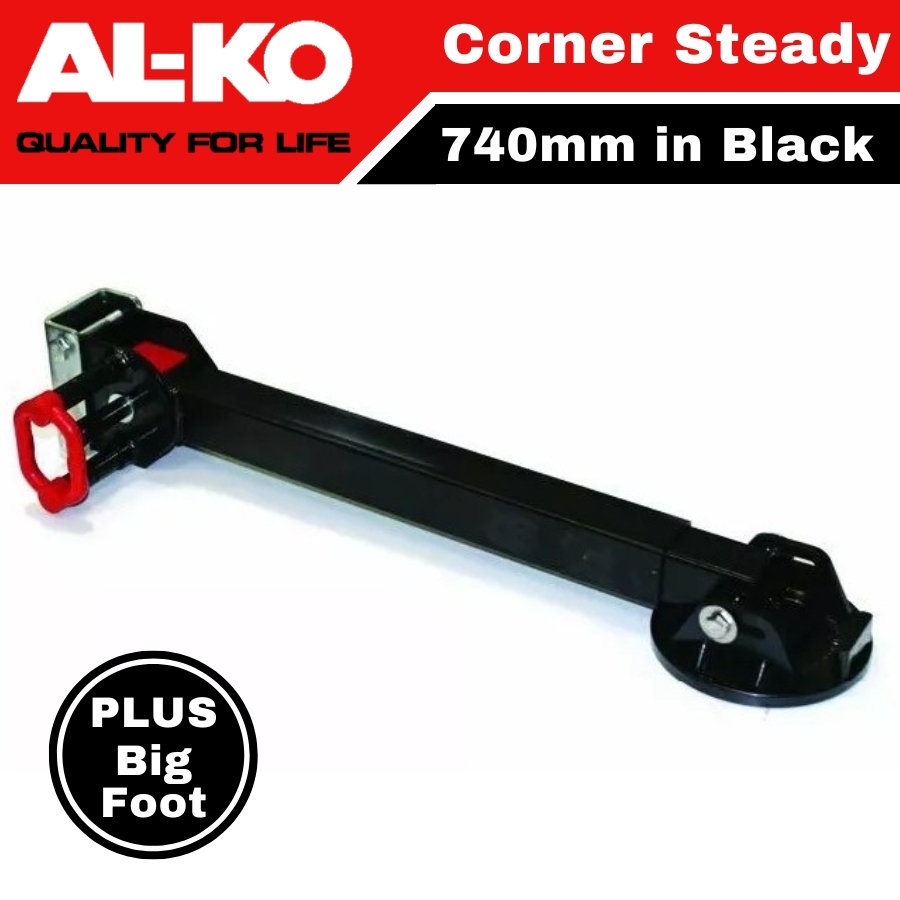

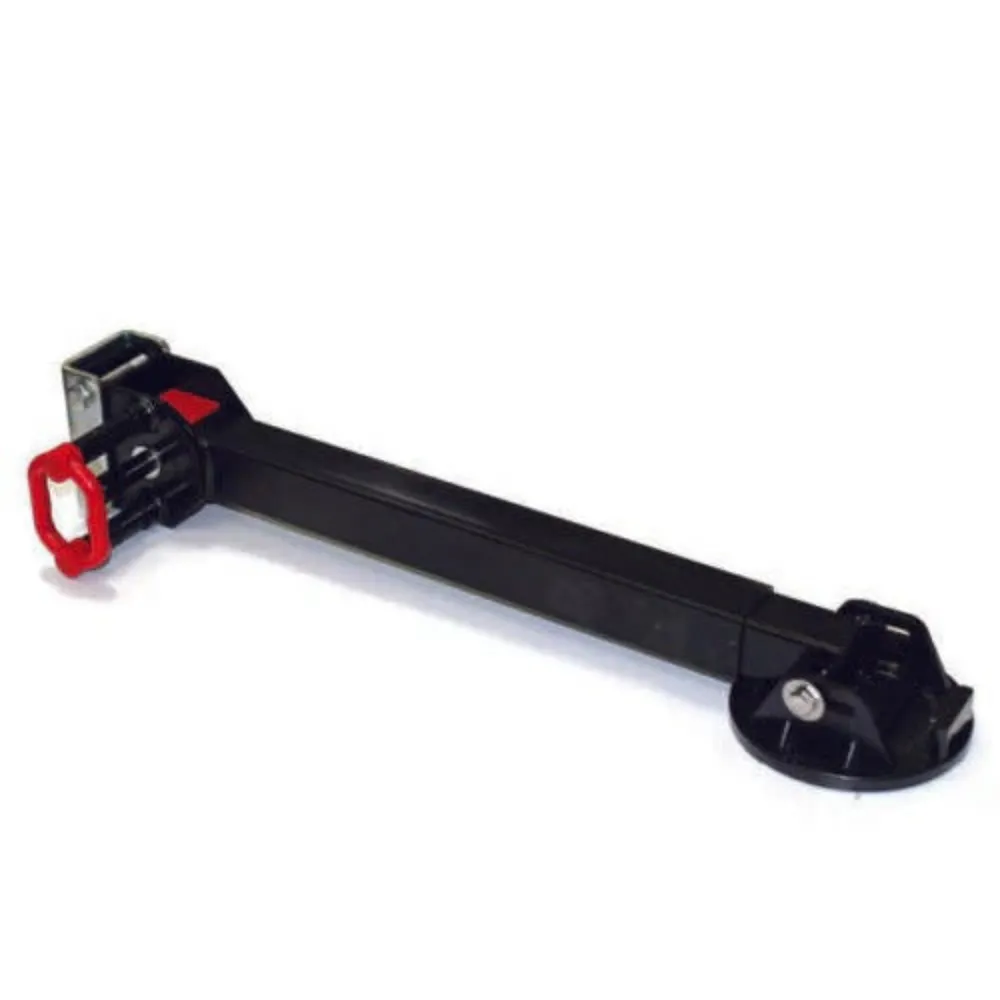

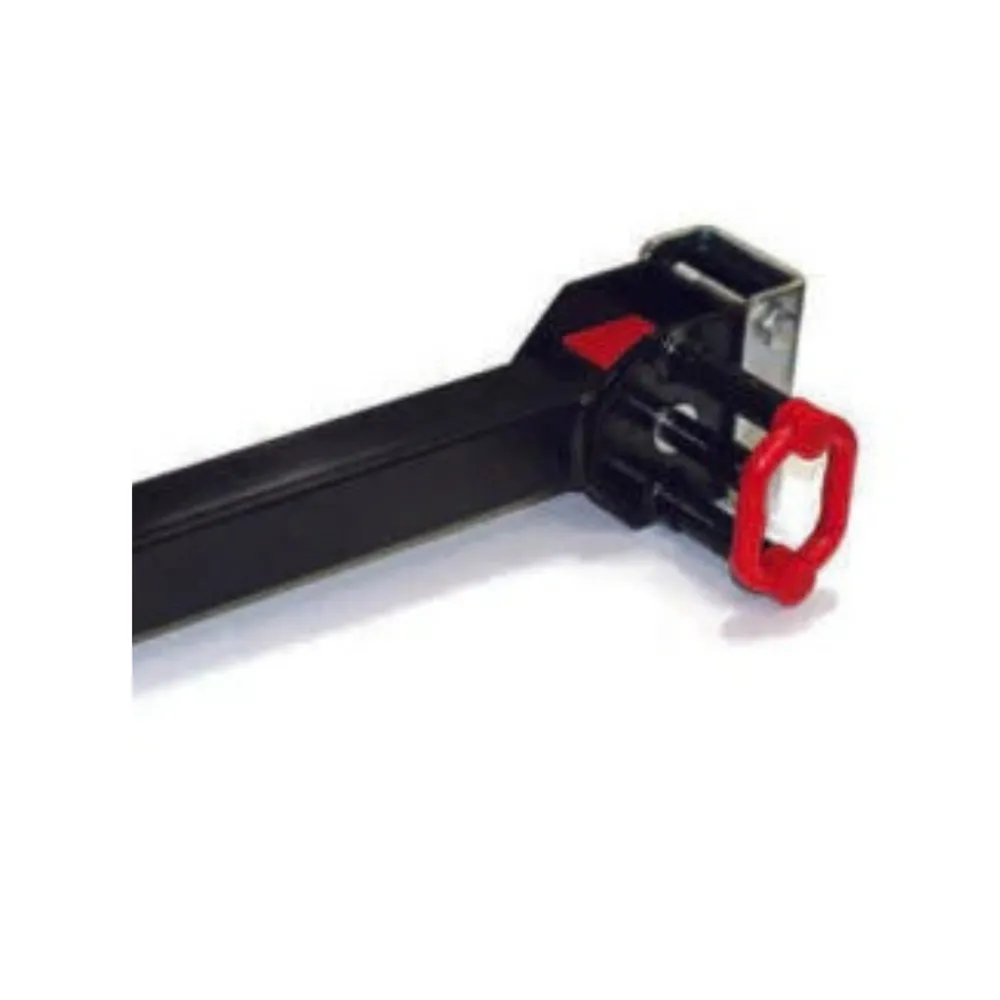

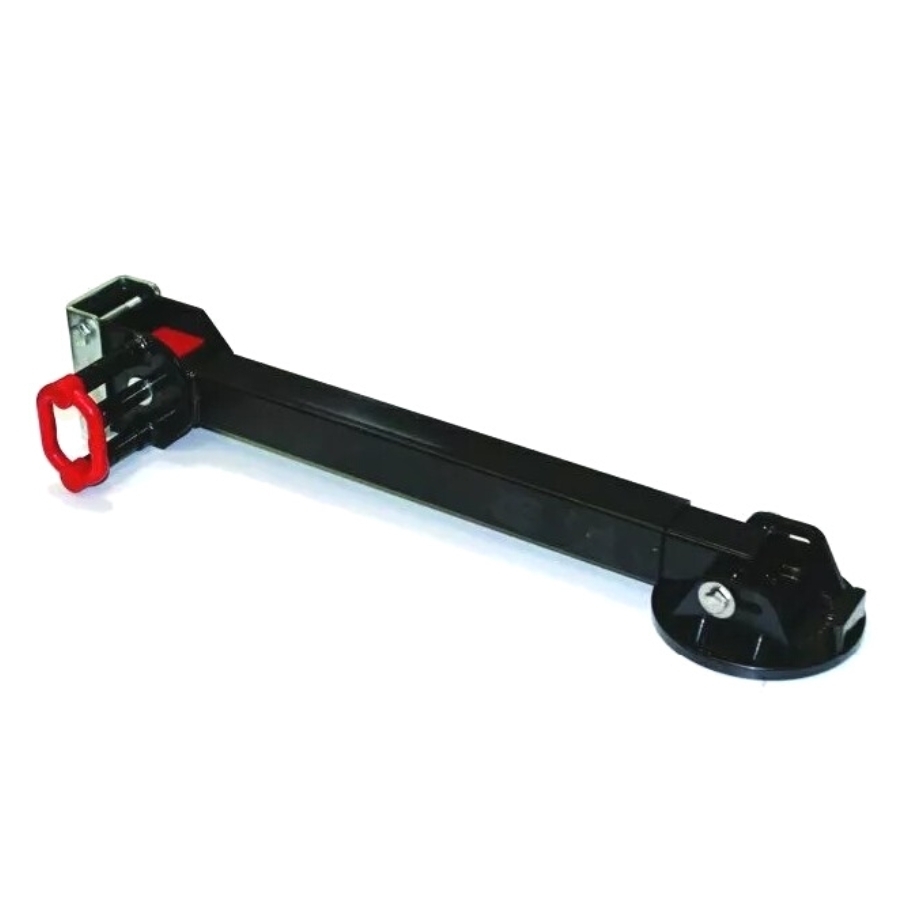

AL-KO Drop Down Corner Steady 740mm (E Coat Black)

ALKO Corner Steadies are designed to stabilize a trailer or caravan when stationary. This E Coat Black 740mm drop-down corner steady has a hex drive and comes complete with a bigfoot making it ideal for softer ground. The Alko leg comes with a mounting plate which can be welded on allowing the corner steady unit to be then bolted to the bracket (with included bolts). This makes it easily removed & swapped over if required.

The "Drop-Down" style steadies can be swung from the horizontal traveling position to different angles including the optimum position of vertical. The corner steady then requires only a small amount of winding to steady the caravan, pop-top or camper trailer. The minimum vertical height is 500mm although the steadies can be set down on an angle when local ground levels vary and don't allow full vertical extension. The maximum height is 740mm (Including the Big Foot & Mounting Bracket).

AL-KO corner steadies have been tested and meet the requirements of the Caravan Industry Association Australia (CIAA), the Australian controlling body for caravan manufacturing standards.

Key Features & Specifications:

  • 740mm version is suitable for most Off-Road RVs.

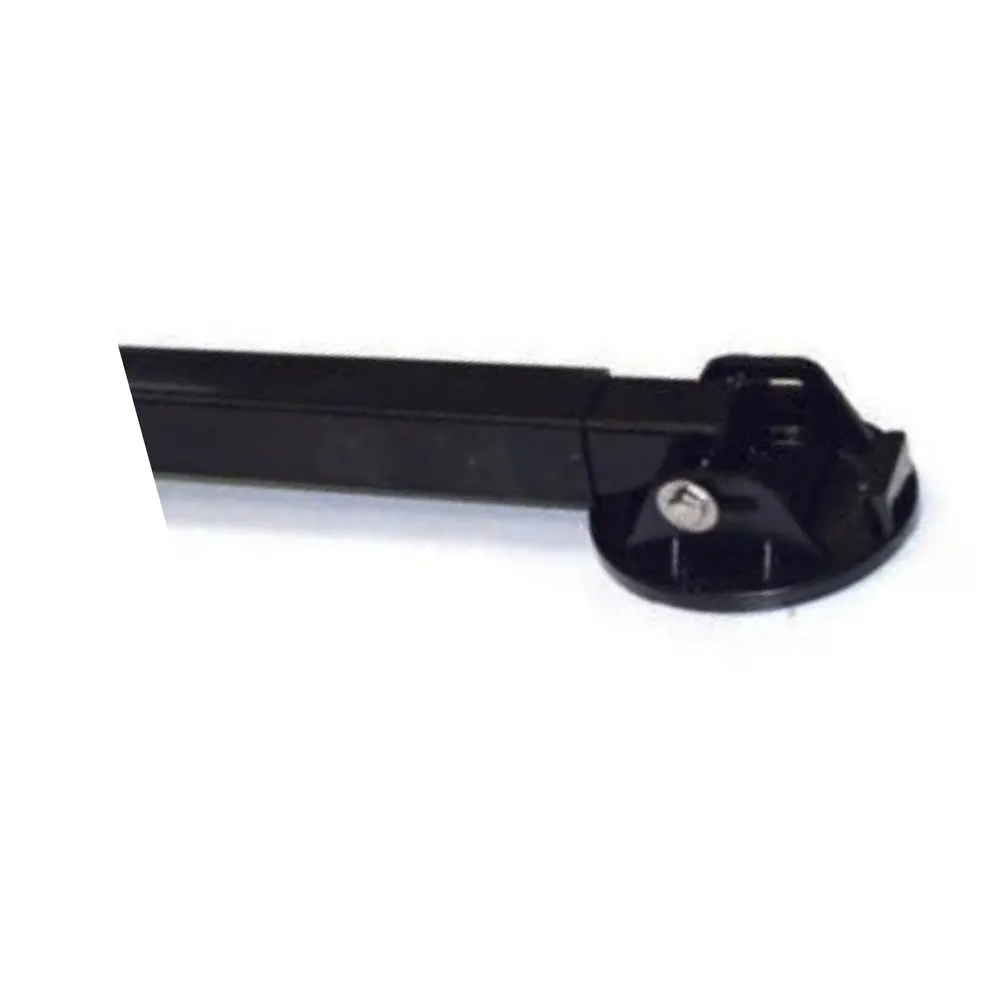

  • Includes fitted Alko Bigfoot
  • Surface Finish: E Coast Black
  • 740mm in Height fully extended (Bigfoot Included)
  • 500mm minimum vertical height (Bigfoot Included)
  • Leg operates at various angles allowing for smaller height
  • Stowed height is 125mm
  • Mounting bracket included for chassis installation.
  • Bolt-on installation for legs to mounting bracket for easy changeover (Two Bolt Hole 80 mm Centres – Leg Top Section Measures L 100 mm x W 65 mm)
  • 19-mm standard hex wind nut
  • Features smooth grip handle for comfort

Notes:

  • Corner steadies are not designed to be used as a jack or as the means of lifting the trailer or caravan off the ground. They are designed to stabilize the trailer or caravan when stationary.
  • The 740mm sized unit generally suits most off-road Caravans but note we also have a taller 840mm model available. For lower On-Road touring models, the 590mm version may be more suitable (but please measure to be sure).
  • Please note the winder handle is not included.

See our full range of AL-KO products.

SKU 654874B
Model # 654874B
Barcode # Does not apply
Brand AL-KO
Colour Black
Shipping Weight 5.8000kg
Shipping Width 0.200m
Shipping Height 0.120m
Shipping Length 0.540m
Shipping Cubic 0.012960000m3
Type New
Location Code 54B1-B2
