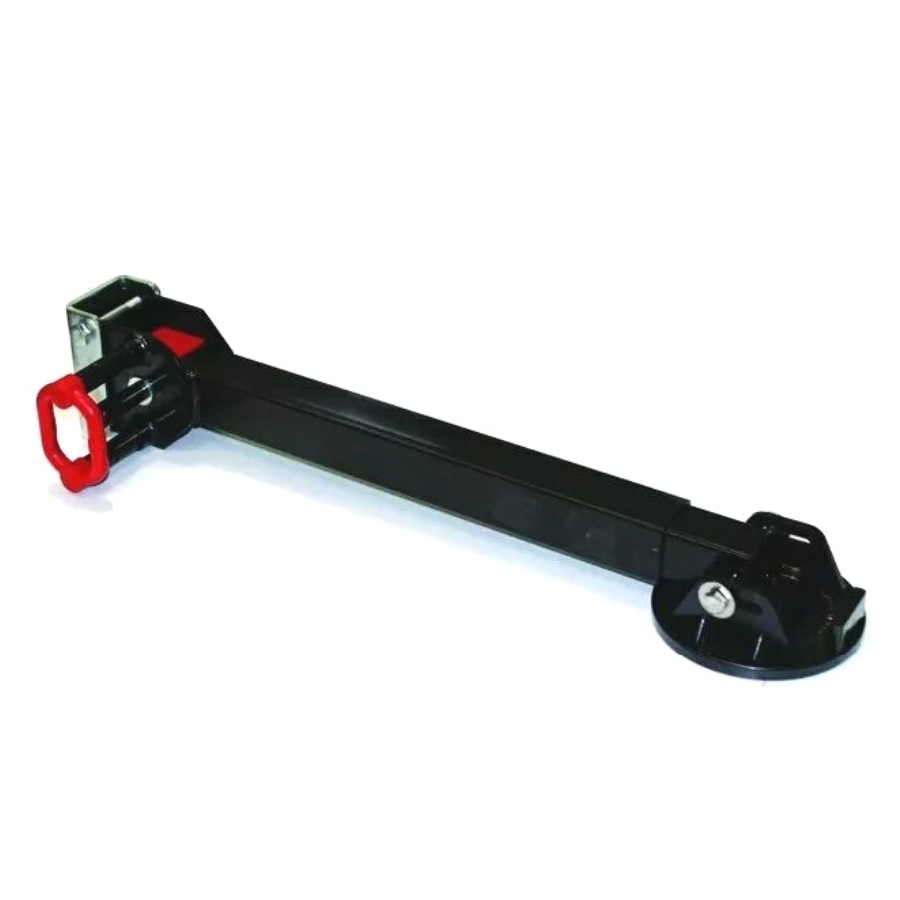

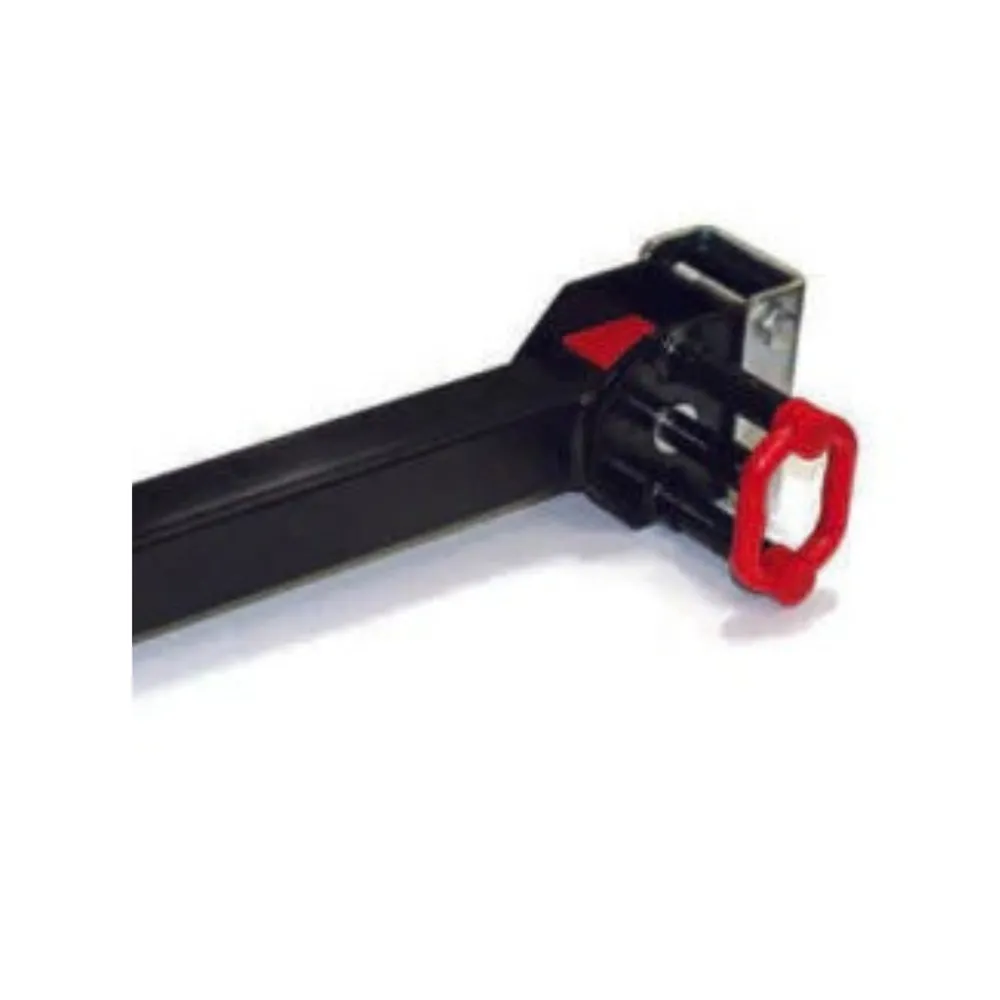

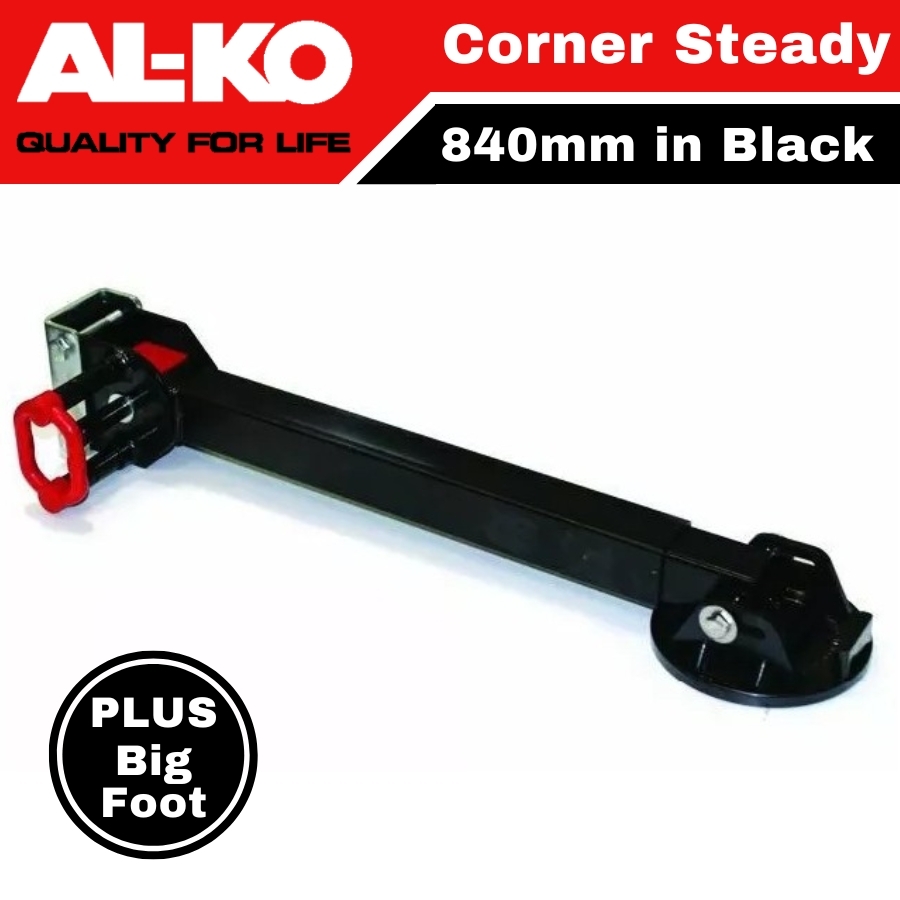

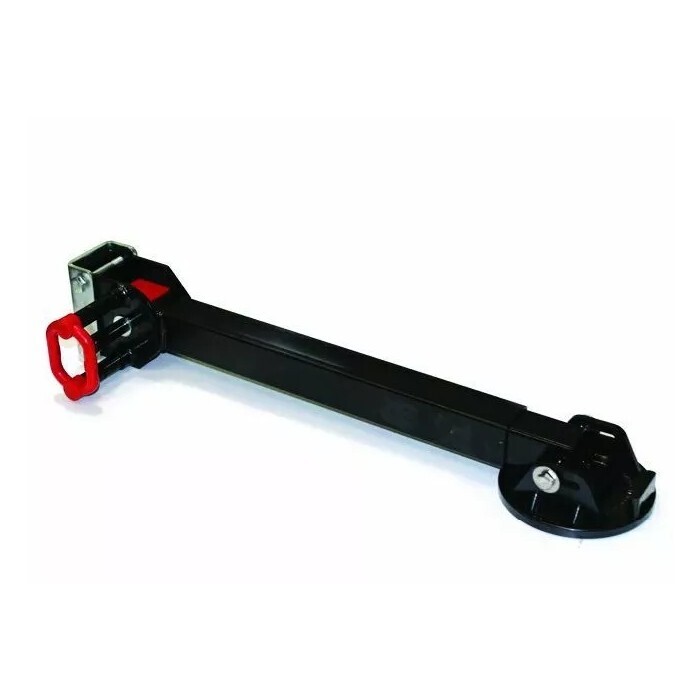

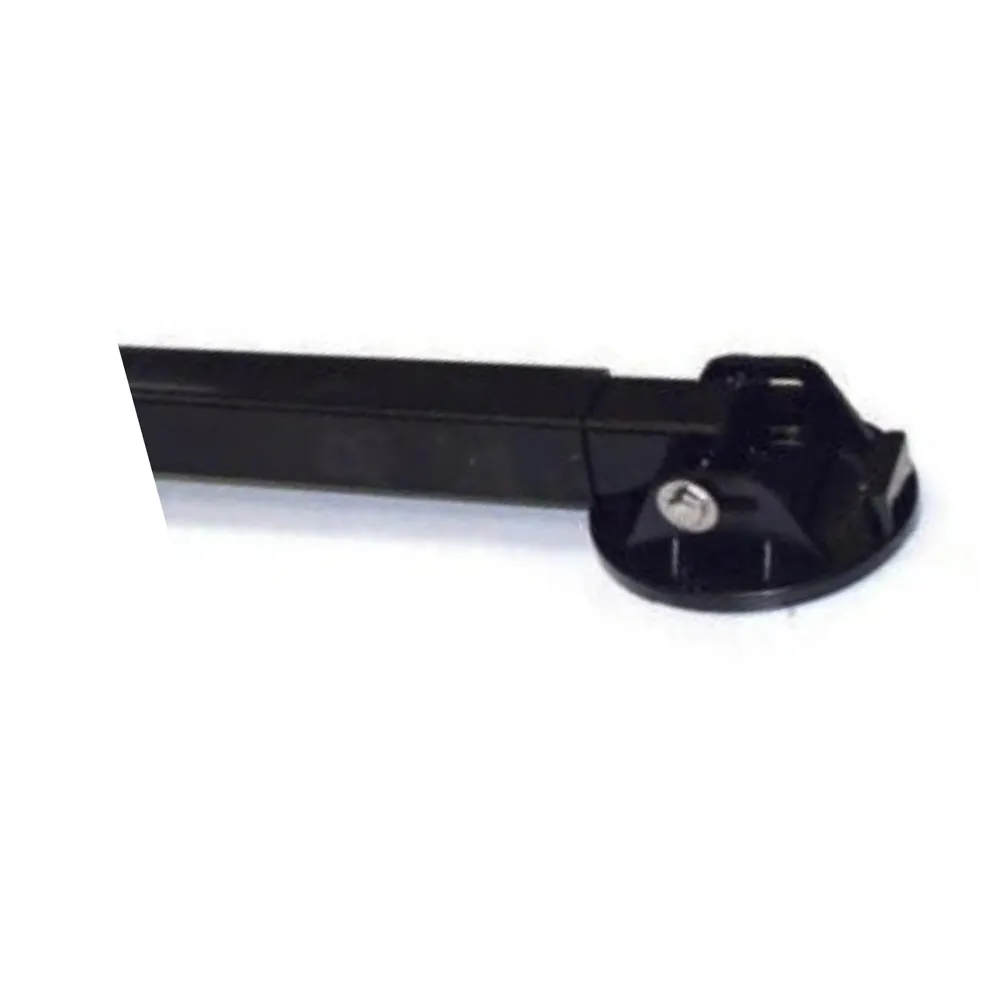

AL-KO Drop Down Corner Steady 840mm (E Coat Black)

ALKO Corner Steadies are designed to stabilize a trailer or caravan when stationary. This E Coat Black 840mm drop-down corner steady has a hex drive and comes complete with a bigfoot making it ideal for softer ground. The Alko leg comes with a mounting plate that can be welded on allowing the corner steady unit to be then bolted to the bracket (with included bolts). This makes it easily removed & swapped over if required.

The "Drop-Down" style steadies can be swung from the horizontal traveling position to different angles including the optimum position of vertical. The corner steady then requires only a small amount of winding to steady the caravan, pop-top or camper trailer. The minimum vertical height is 610mm although the steadies can be set down on an angle when local ground levels vary and don't allow full vertical extension. The maximum height is 840mm (Including the Big Foot & Mounting Bracket).

AL-KO corner steadies have been tested and meet the requirements of the Caravan Industry Association Australia (CIAA), the Australian controlling body for caravan manufacturing standards.

Key Features & Specifications:

  • 840mm version generally suits tall off-road RV's
  • Includes fitted Alko Bigfoot
  • Surface Finish: E Coast Black
  • 840mm in Height fully extended (Bigfoot Included)
  • 610mm minimum vertical height (Bigfoot Included)
  • Leg operates at various angles allowing for smaller height
  • Stowed height is 125mm
  • Mounting bracket included for chassis installation.
  • Bolt-on installation for legs to mounting bracket for easy changeover (Two Bolt Hole 80 mm Centres – Leg Top Section Measures L 100 mm x W 65 mm)
  • 19-mm standard hex wind nut
  • Features smooth grip handle for comfort

Notes:

  • Corner steadies are not designed to be used as a jack or as a means of lifting the trailer or caravan off the ground. They are designed to stabilize the trailer or caravan when stationary.
  • Please note the winder handle is not included.

See our full range of AL-KO products.

SKU 654884B
Model # 654884B
Barcode # Does not apply
Brand AL-KO
Colour Black
Type Shock
Material Steel
Shipping Weight 6.2000kg
Shipping Width 0.200m
Shipping Height 0.120m
Shipping Length 0.610m
Shipping Cubic 0.014640000m3
Assembled Length 0.840m
Assembled Height 0.110m
Assembled Width 0.077m
Type New
Location Code 54A1-A2

Help other users shop smarter by writing reviews for products you have purchased.

Write a review

1-year warranty
