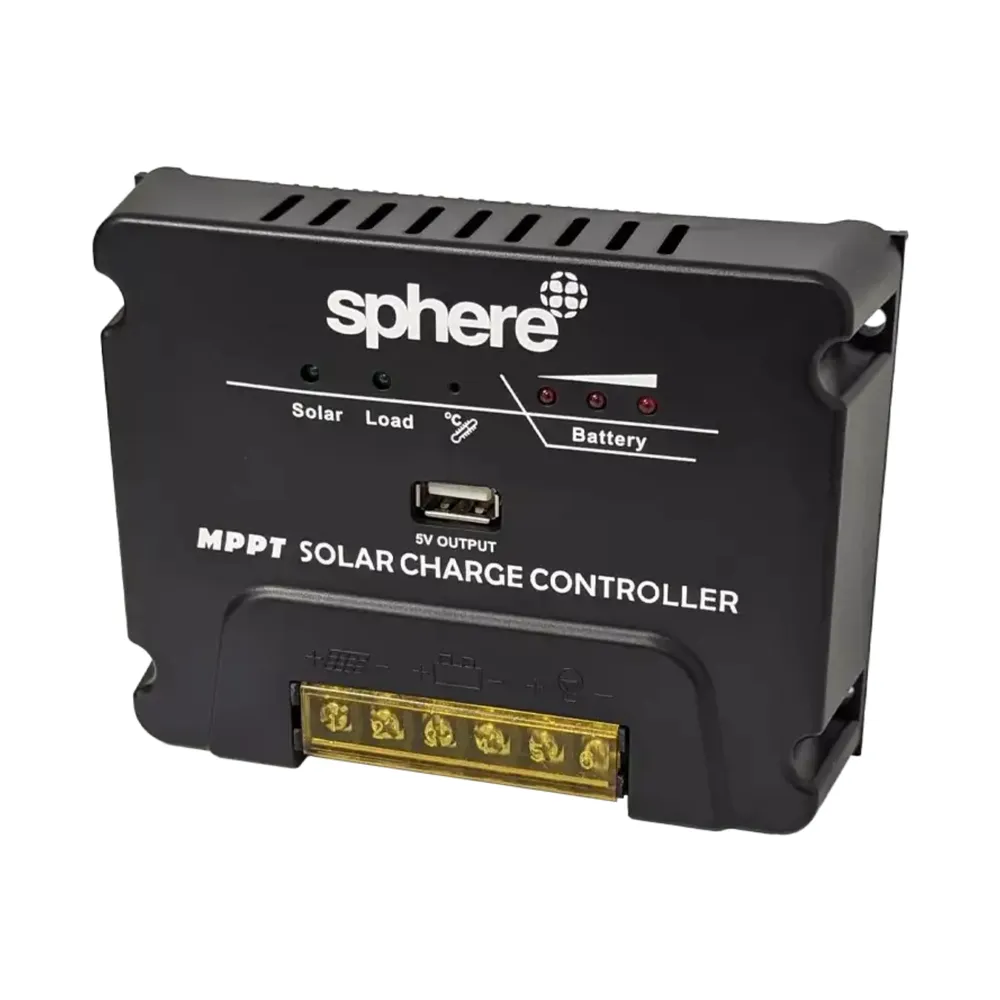

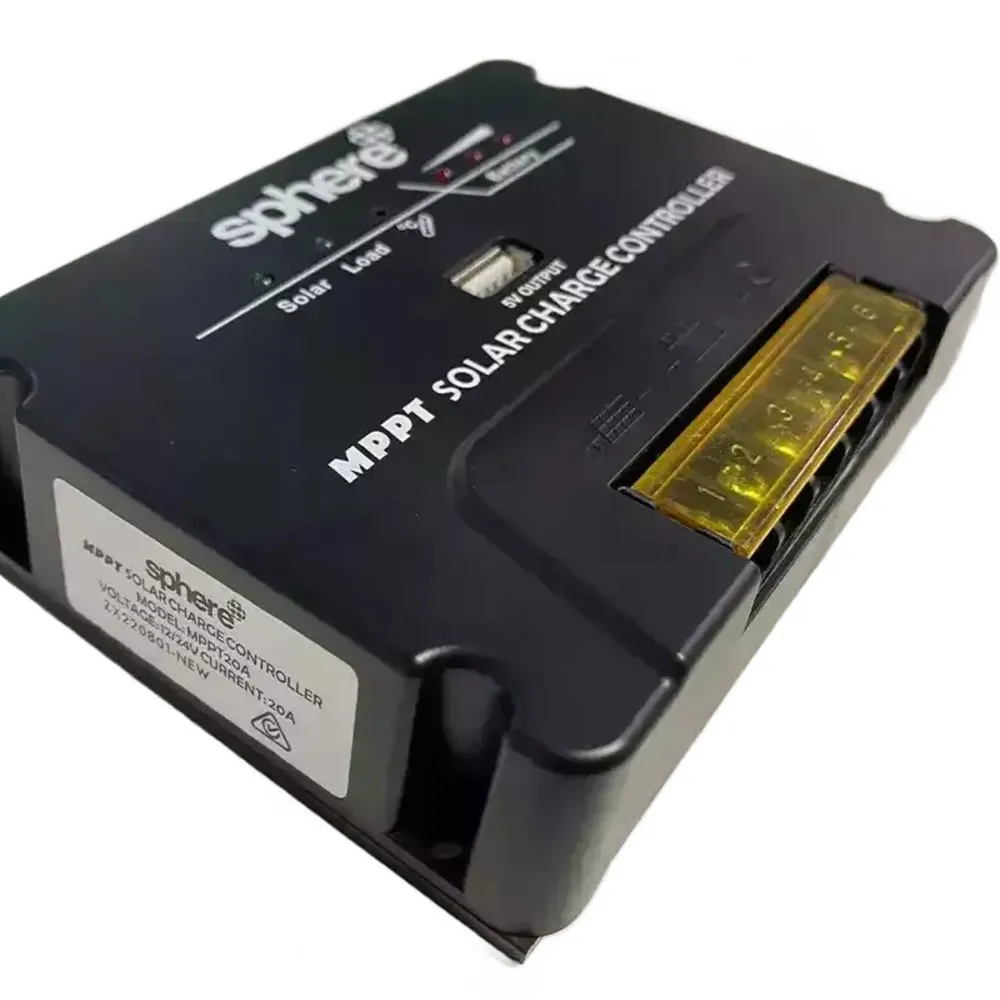

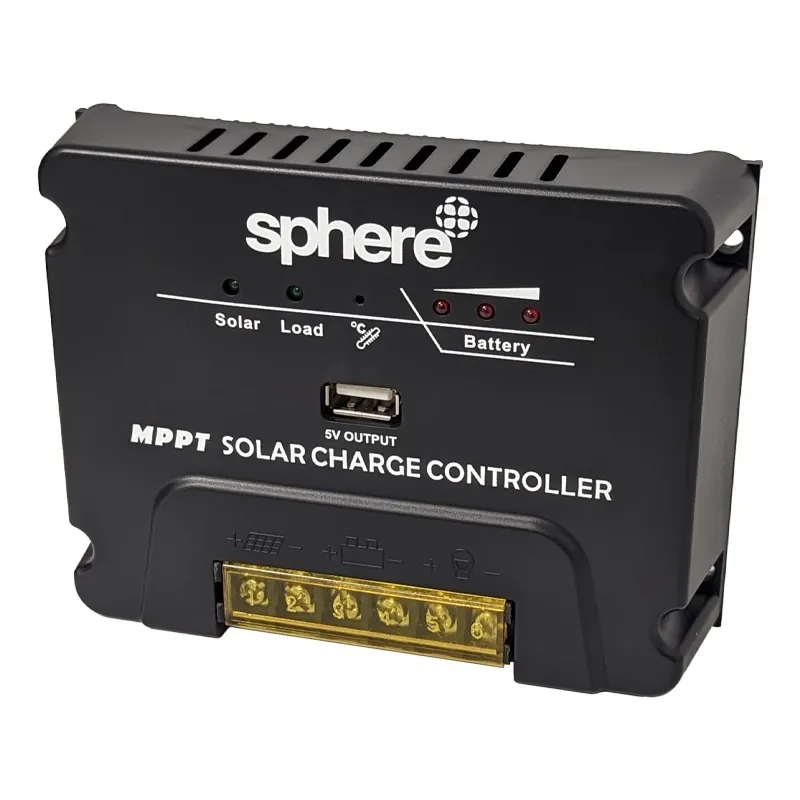

Sphere MPPT 12V/24V 20A Solar Charge Controller

The Sphere MPPT 12V/24V 20A Solar Charge Controller is the ultimate solution for optimal solar energy conversion. Its innovative MPPT technology allows for rapid tracking and capture of the maximum power point of multi-wave peaks, resulting in an impressive 94% energy conversion efficiency - higher than 75% of PWM solar controllers.

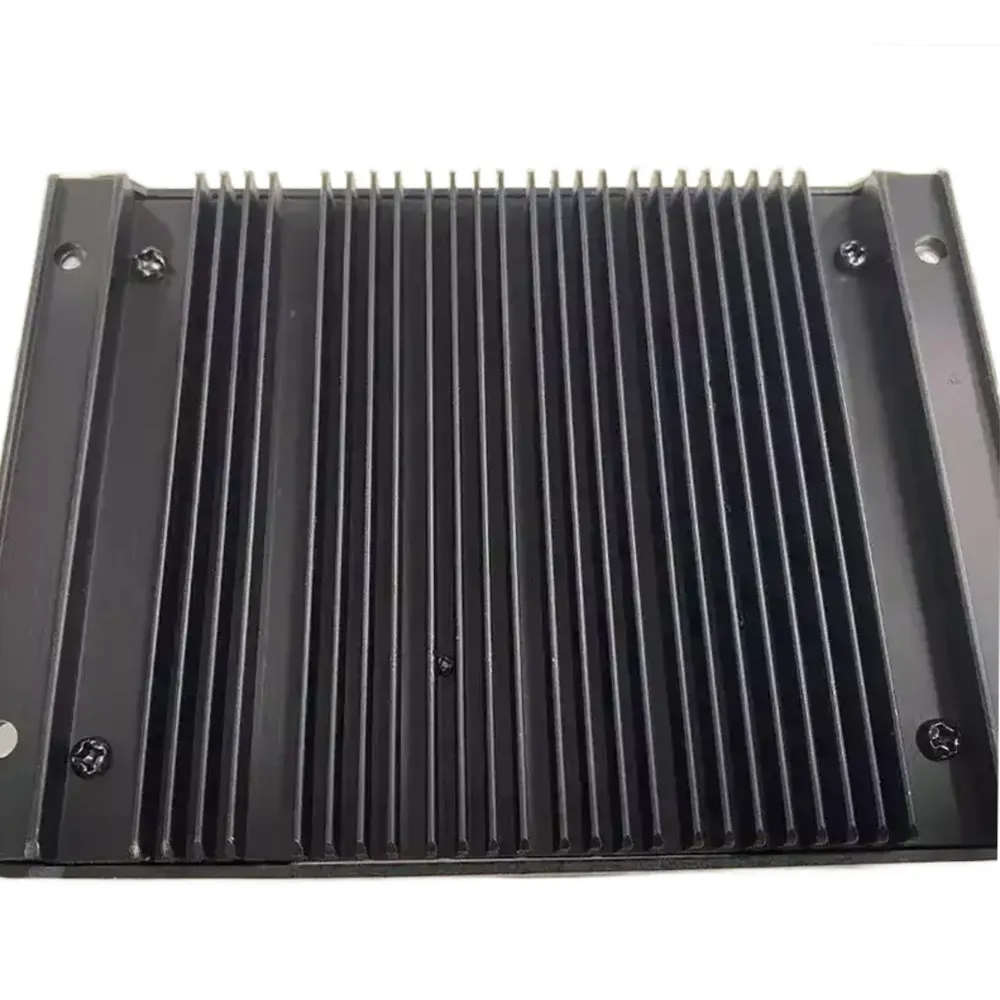

Constructed with tough ABS housing and upgraded aluminium heat sinks, this durable solar regulator is built to last. It's a great addition to any solar panel system and is compatible with a variety of lead acid deep cycle batteries and LiFePO4 batteries, thanks to its multi-stage properties that better support batteries.

Specifications:

  • Model: MPPT20A
  • Brand: Sphere
  • Rated Charge Current 20A
  • Rated Voltage 12V/24V
  • MPPT Effciency Max:99%
  • Over Load, Short Circuit Protection ≥1 .5 rated current
  • No Load Current <10mA
  • USB Output 5V 1A
  • Working Temperature -35℃~+55℃
  • Dimension of Controller 131 x 99.5 x 29.5(mm) (LxWxH)
  • Weight 300g

SKU 500-06221
Model # 500-06221
Barcode # Does not apply
Brand Sphere
Colour Black
Shipping Weight 0.3300kg
Shipping Width 0.120m
Shipping Height 0.050m
Shipping Length 0.160m
Shipping Cubic 0.000960000m3
Assembled Length 0.131m
Assembled Height 0.030m
Assembled Width 0.995m
Type New
Location Code 82D2

Help other users shop smarter by writing reviews for products you have purchased.

Write a review

All items in our store are from reputable Australian suppliers and are covered by a 12-month  warranty for faults and defects.

Products must be used correctly and for the function they were designed for. Damage by customer misuse is not warrantable.

For full warranty information, visit our warranty page - Click here.

If you would like to submit a warranty claim, please submit a support ticket on our Customer Support Portal.

Click here to visit the portal

Due to the high incidence of online fraud, you will be required to provide proof of any warranty claims and may be required to return the item for assessment.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.



Key Features:

  • MPPT Technology: Maximizes energy conversion efficiency up to 99% by tracking and capturing the maximum power point, significantly enhancing energy output.
  • Durable Construction: Built with ABS housing and upgraded aluminum heat sinks to ensure longevity and effective heat dissipation.
  • Battery Compatibility: Supports lead acid deep cycle and LiFePO4 batteries with multi-stage charging, ensuring optimal performance and battery protection.
  • Protection Features: Includes overload and short circuit protection, automatically protecting the system from damage.
  • Low Power Consumption: No-load current is less than 10mA, conserving power when not in use.

Specifications:

  • Model: MPPT20A
  • Brand: Sphere
  • Rated Charge Current 20A
  • Rated Voltage 12V/24V
  • MPPT Effciency Max:99%
  • Over Load, Short Circuit Protection ≥1 .5 rated current
  • No Load Current <10mA
  • USB Output 5V 1A
  • Working Temperature -35℃~+55℃
  • Dimension of Controller 131 x 99.5 x 29.5(mm) (LxWxH)
  • Weight 300g
