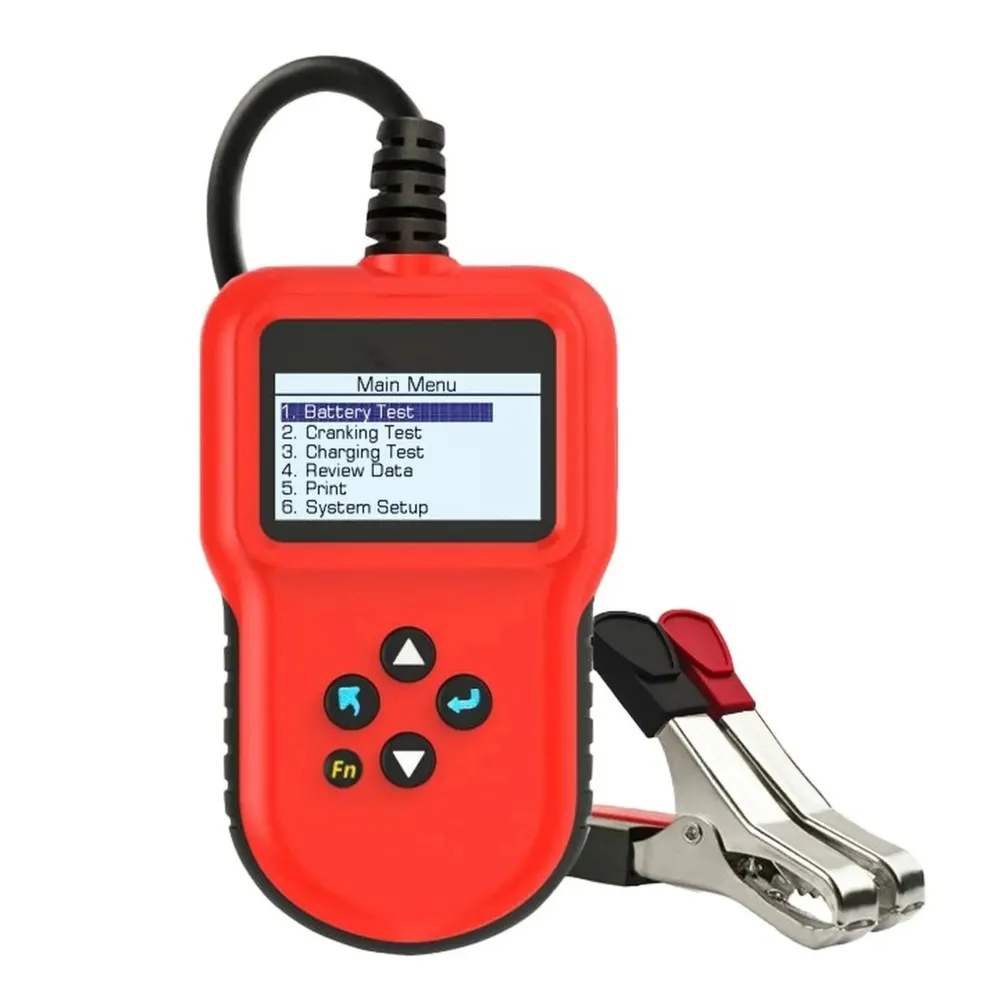

12V Lithium & Lead Acid Battery Tester

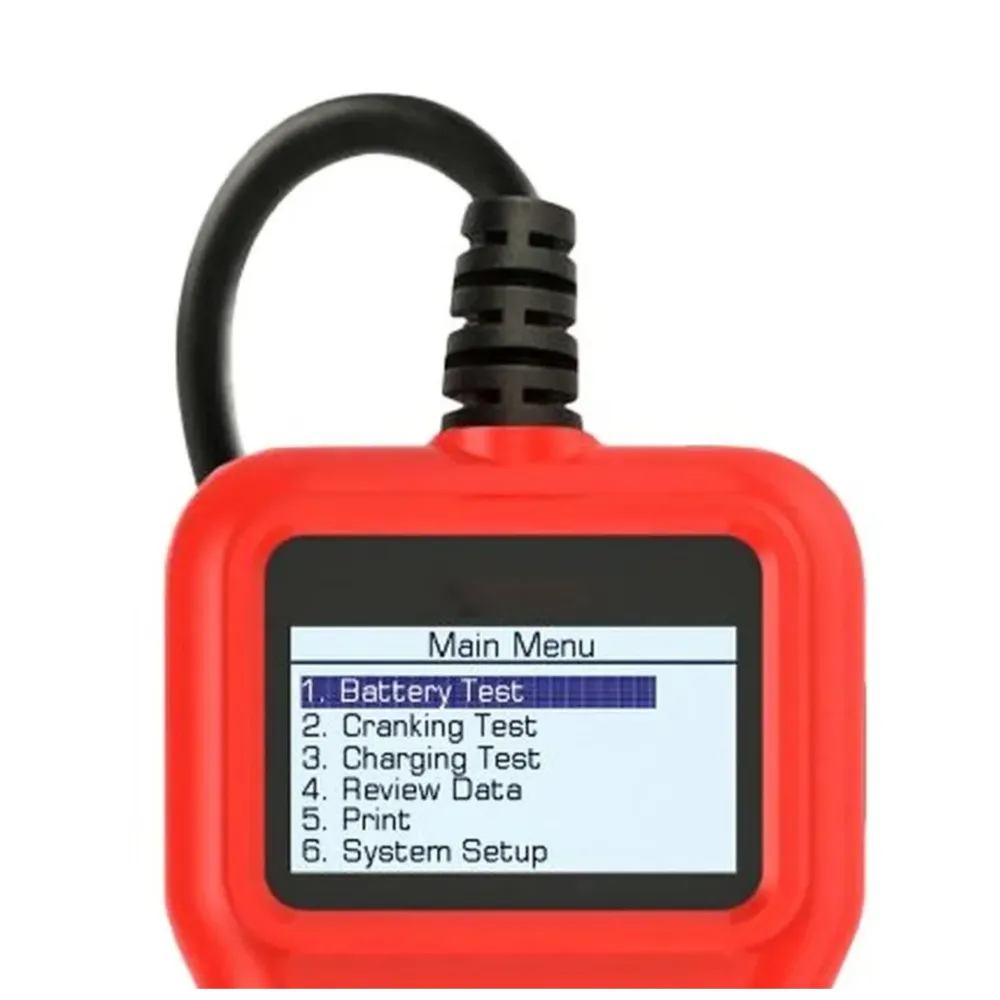

Knowing the true condition of your 12V battery and charging or cranking system can help avoid becoming stranded with a flat battery, or save you from an expensive replacement if it isn’t necessary. This multifunction tester is designed to test and analyse the condition of a wide variety of 20-220Ah 12V batteries, including lead-acid and Lithium, as well as testing cranking and charging (alternator) systems. Real-time battery tests include voltage, resistance, and load, which results in a good, recharge, charge retest, replace, bad cell & replace indication on the backlit LCD screen.
Vehicle charging system tests include load voltage, unloaded voltage, ripple status and charging system status. Vehicle cranking system tests include cranking time, voltage and status. Supported battery types include starting, deep cycle, wet (flooded), VRLA, maintenance free, sealed maintenance free, absorption glass mat, GEL, EFB and Lithium. Batteries can be tested in or out of the vehicle, and data can be printed by connecting to the USB port of a computer using the supplied cable.
Specifications:
- Display Type: LCD
- DC Volts Measurement Range: 8 to 30V
- Test Leads Length: 1m
- Test Functions: Battery Health, Battery Charge, Battery Internal Resistance
- Tester Form: Handheld Tester with Leads
SKU | QP2262 |
Model # | QP2262 |
Barcode # | 9319236777435 |
Brand | Protech |
Colour | Red |
Type | Battery Tester |
Material | Various |
Shipping Weight | 0.3400kg |
Shipping Width | 0.180m |
Shipping Height | 0.060m |
Shipping Length | 0.240m |
Shipping Cubic | 0.002592000m3 |
Assembled Length | 0.120m |
Assembled Height | 0.020m |
Assembled Width | 0.075m |
Type | New |
Location Code | Showroom |
Help other users shop smarter by writing reviews for products you have purchased.
FEATURES
- Supports 12V batteries and charging/starting systems
- Tests Lead-acid batteries between 100-1400CCA
- Tests Li-ion batteries between 10-1000CCA
- Computer connection for printed test results
