Experience the future of RV climate control.

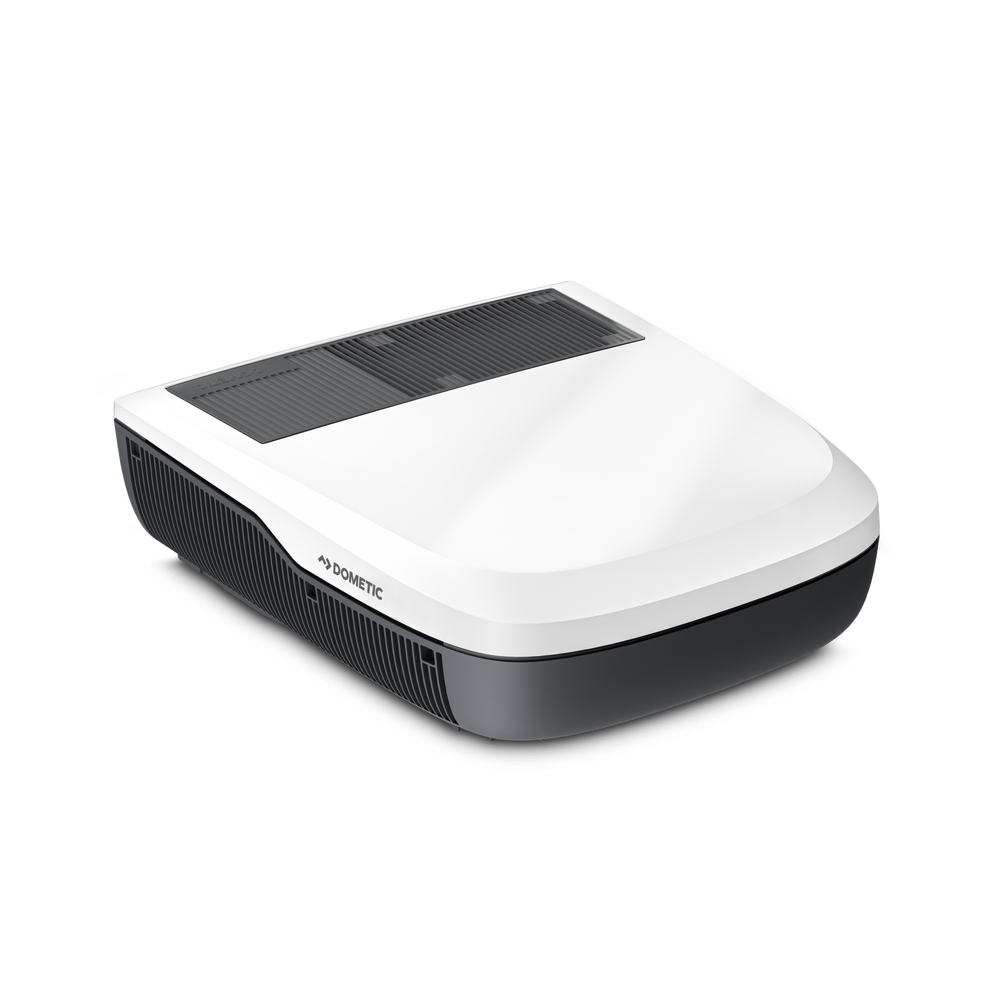

This compact 3000W roof caravan air conditioner has been engineered for top-tier performance – smarter, quieter, easier, greener. Packed with exclusive FJZ series features, it cools and heats your caravan or RV with impressive efficiency and significantly reduced noise levels.

  • Suits Vans - 20' to 23'
  • Replaces the Harrier Plus

Please note: Can be purchased with the Dometic FreshJet FJZ ADB 9620001693



SKU 9620001689
Model # 9620001689
Barcode # 6975399590033
Brand Dometic
Colour White
Model Number 9620001689
Shipping Weight 36.0000kg
Shipping Width 0.760m
Shipping Height 0.280m
Shipping Length 0.810m
Shipping Cubic 0.172368000m3
Unit Of Measure ctn

Help other users shop smarter by writing reviews for products you have purchased.

Write a review

All items in our store are from reputable Australian suppliers and are covered by a 12-month  warranty for faults and defects.



  • FreshJet-Lite
  • Fast cooling and heating
  • Small size, Premium design
  • Adaptive Power Mode
  • Quietest operation yet
  • Integrated heating
  • Improved sustainability
  • Certificates CB;CE;ECER10;RCM
  • Input voltage (AC), [V] 220-240
  • Input frequency, [Hz] 50/60
  •







Dimensions:

Dimensions product depth, [mm] 752
Dimensions product height, [mm] 225
Dimensions product width, [mm] 702
Dimensions product width, ["] - Display 27.64
Net weight, [kg] 30.60
Net weight, [lbs] 67.47
Standard mount. material thickness 1 min, [mm] 25
Standard mount. material thickness 1 max, [mm] 60
Cut out depth, [mm] 400
Cut out width, [mm] 400

PERFORMANCE:

Connectivity Type RS485
Hermetically Sealed Yes
Refrigerant, type R32
GWP 675
CO2 equivalent, 0.28
AirFlow, [m<sup>3</sup>h] 414
Cooling Capacity ISO5151 Display 3000
Operating temperature min, [°C] -2
Operating temperature max, [°C] 52
