Jayco Water Filler Inlet

$74.95
RRP $90.95
SAVE $16.00 (18%)

or 4 payments of $18.74 with Learn more

In Stock



Calculate Shipping

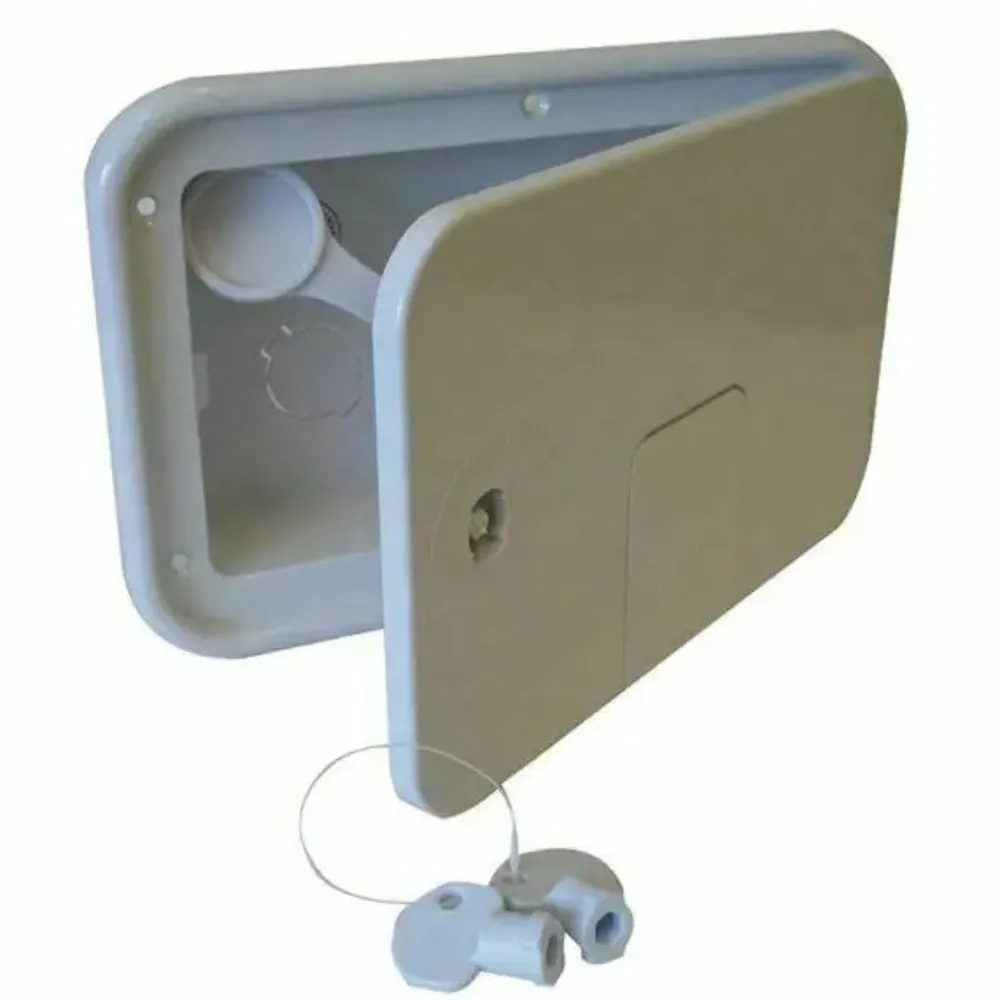

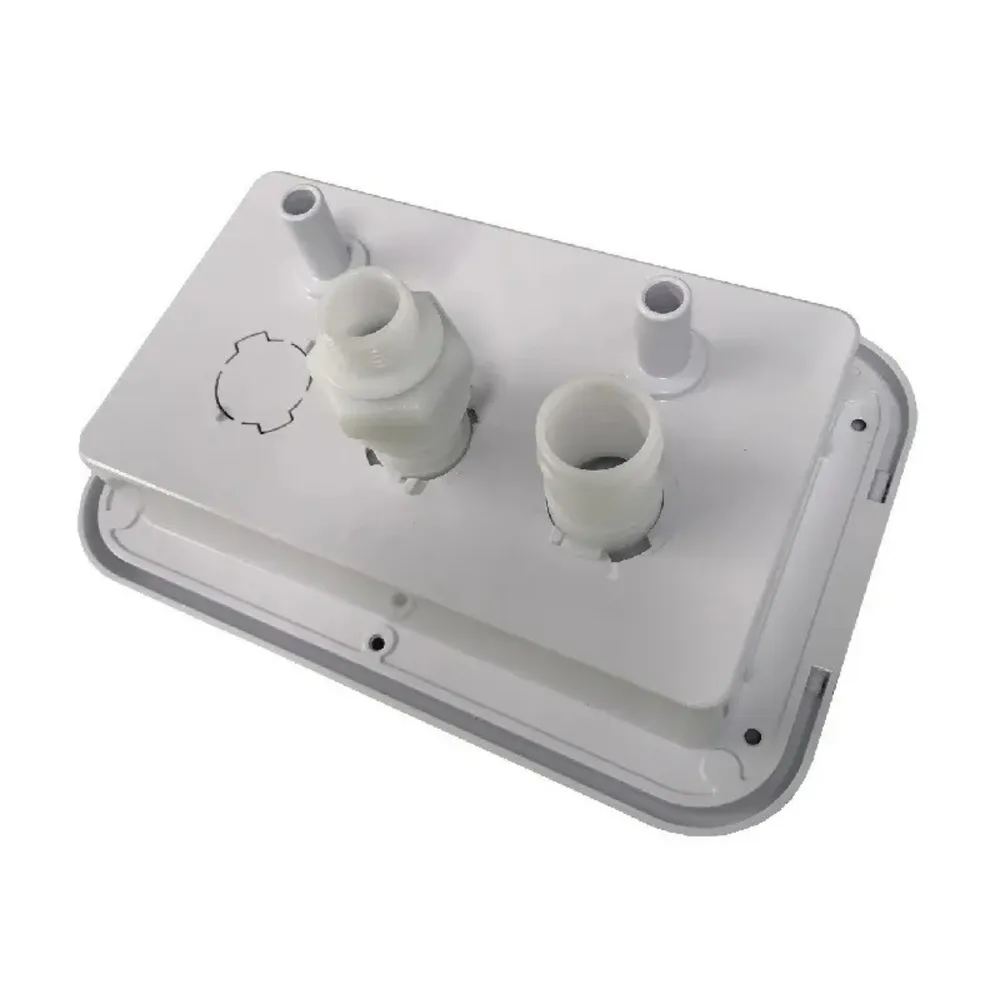

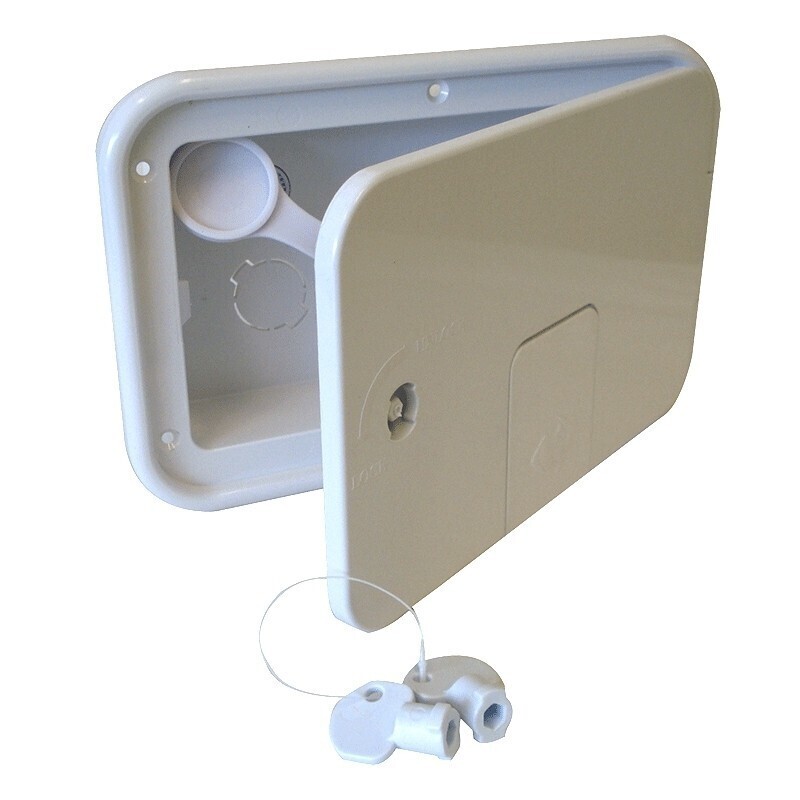

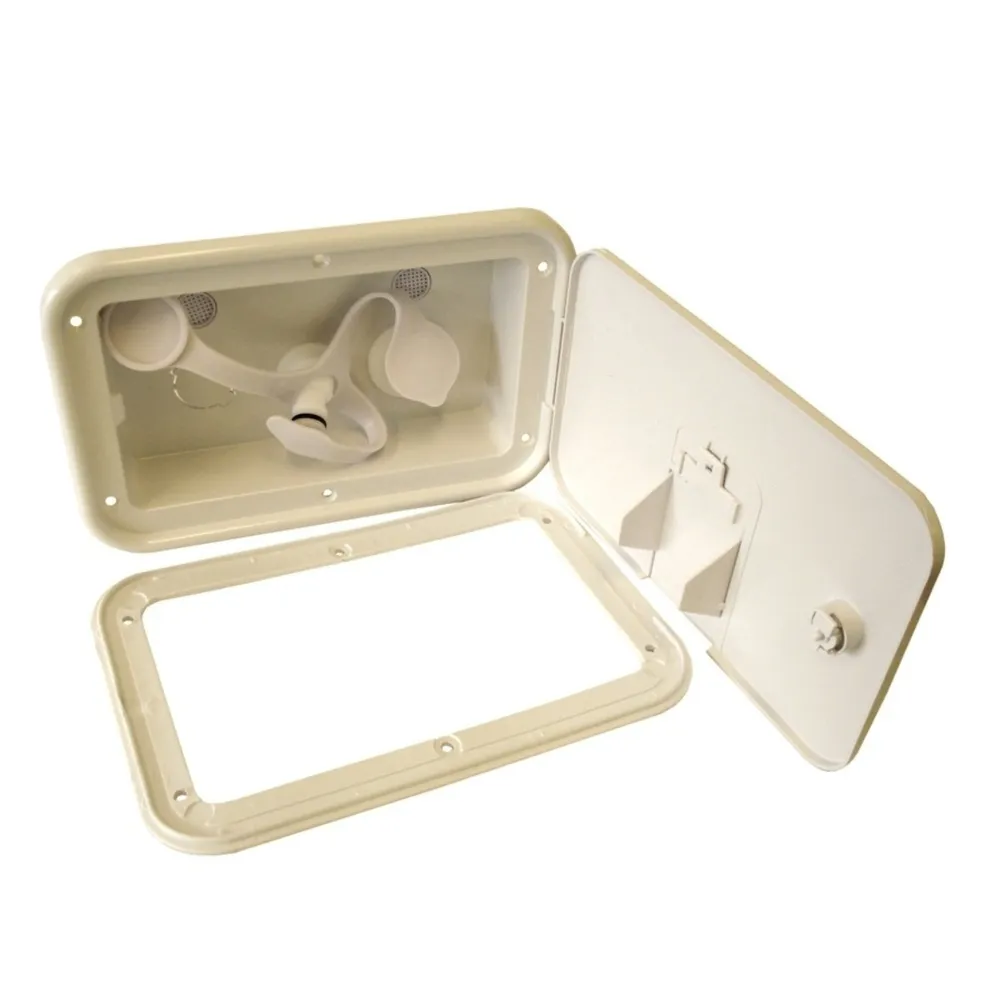

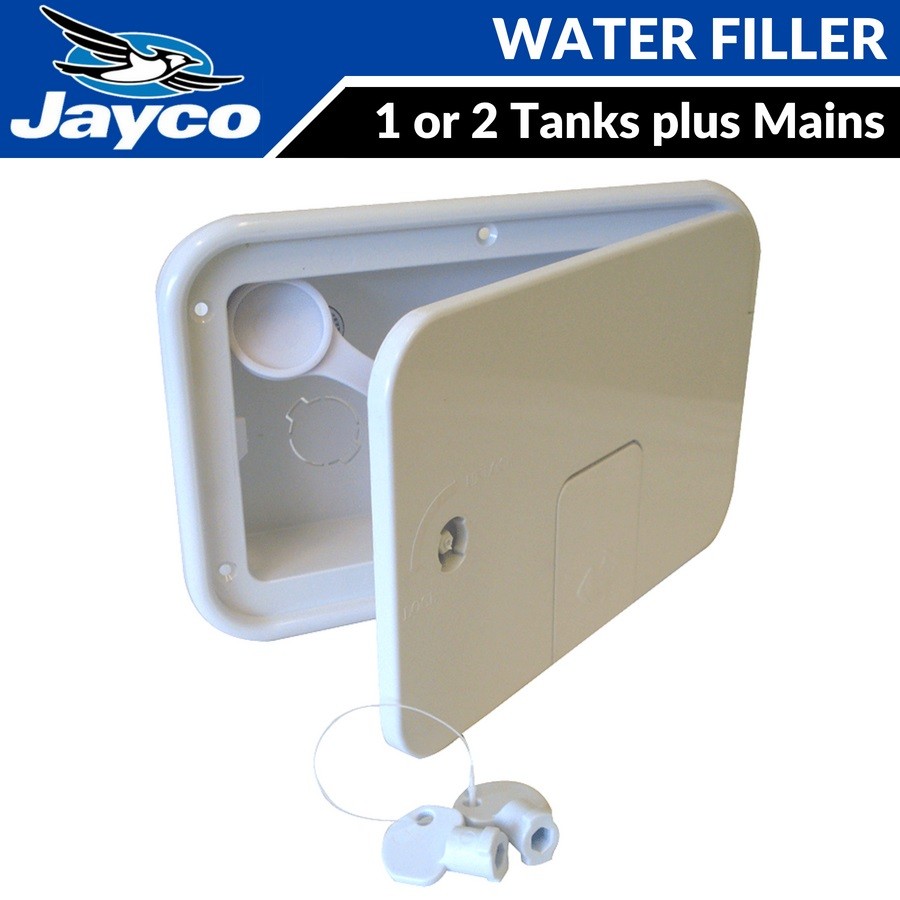

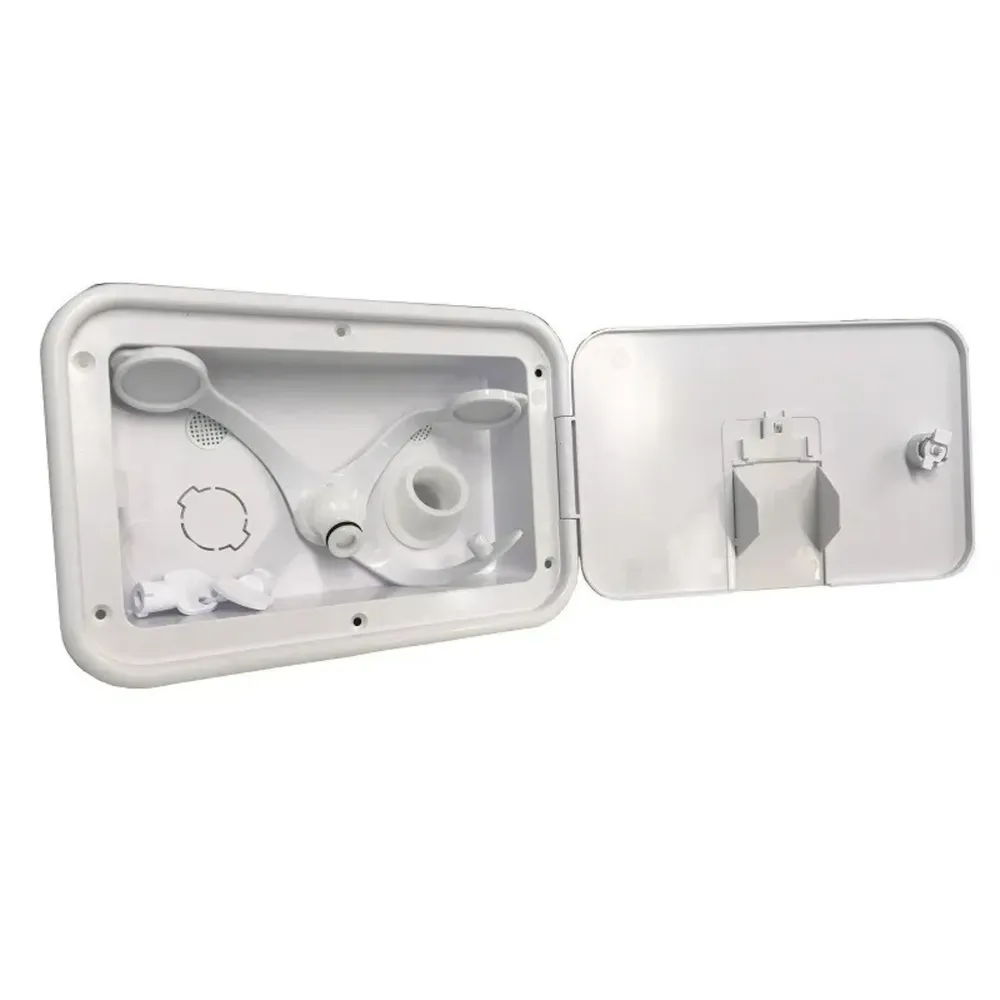

Jayco Water Filler Inlet (Mains & 1 or 2 Tanks)

Used with the current range of Jayco Caravans, Pop Tops and Camper Trailers, the new Jayco water filler with lockable door includes an inlet for a mains connection together with 1 tank inlet and space for another support up to 2 water tank inlets. Note a separate part is required to complete 2 tank fillers (800-10920 available separately)

The water filler includes a flap for a mains hose connection so the door can be locked while in use, minimising the risk of any tampering with the connection and tank filler inlets. Rubber caps are also included to cover the 3 inlets while in transit or not in use.

Key Features:

  • Lockable door with 2 keys supplied
  • Hose flap allows mains connection with door locked
  • Supports mains connection and up to 2 tanks (with optional extra filler)
  • Includes 2x 12mm breathers for 2 water tanks
  • Comes with a rubber gasket to seal the unit against the RV

Specifications:

  • Dimensions: 227mm x 150mm with 25mm radius corners
  • Cut Out Required: 185mm x 110mm cut out with 8mm radius corners
  • Depth of unit (excluding connection points): 100mm
  • Mains hose Flap: 65mmx55mm
  • Mains Connection to 1/2 inch BSP

See our full range of Jayco products.

All items in our store are from reputable Australian suppliers and are covered by a 12-month warranty for faults and defects.

We operate in accordance with Australian Consumer Law.

Please choose carefully.

It is the customers' responsibility to read the terms and conditions prior to purchasing and to determine if a product is right for their use and vehicle.

Damage by misuse is not warrantable.





C6477D

SKU C6477D
Model # C6477D
Barcode # Does not apply
Brand Jayco
Shipping Weight 0.4900kg
Shipping Width 0.170m
Shipping Height 0.140m
Shipping Length 0.250m
Type New
