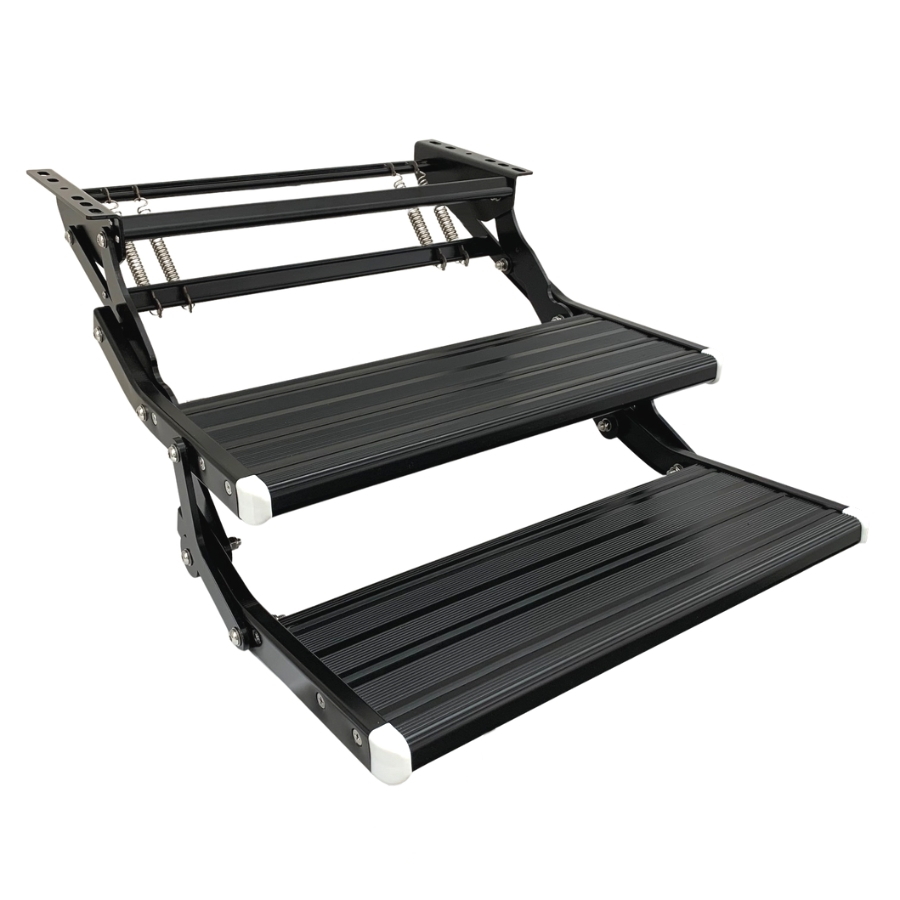

Black Double Pull Out Aluminium Step

Campsmart's double pull-out aluminium step features outstanding design together with a premium quality build & finish. It is stylish a yet tough and lightweight step, easy to pull out and fold away. The double step is ideal for Off-Road Caravans and Camper Trailers which have an elevated entry into the RV.

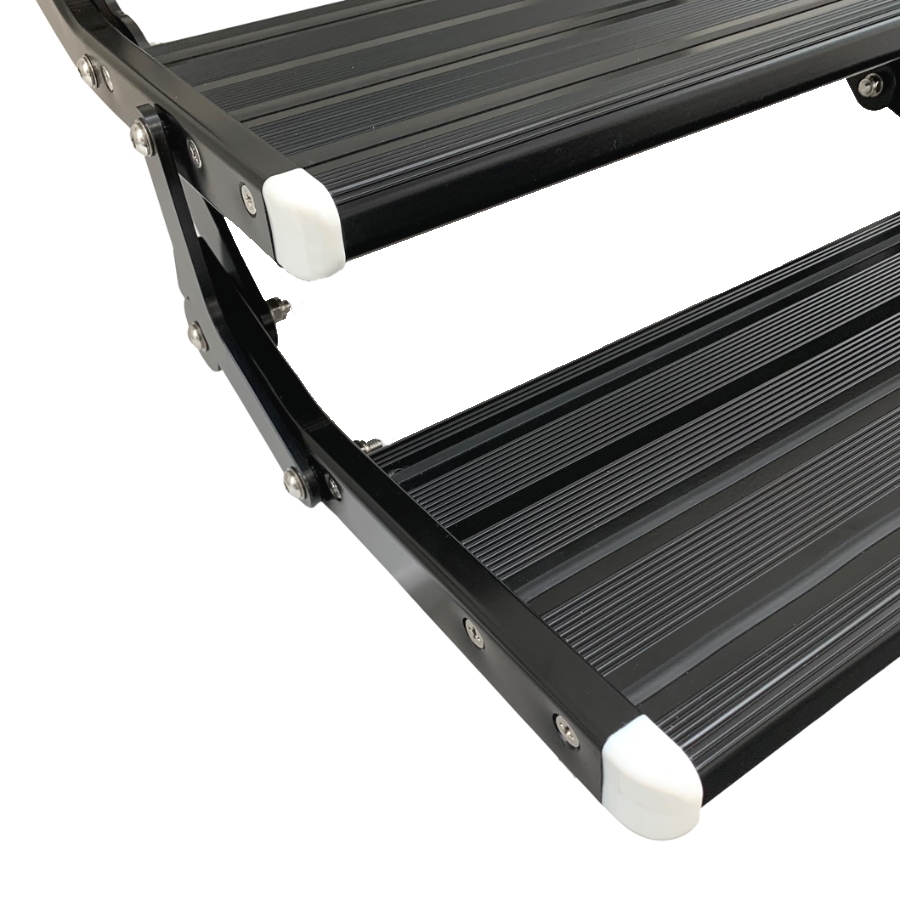

The step featured spring-loaded hinges, an anti-slip ribbed tread with integrated rubber strips & glow in the dark corners.

Key Features Include:

  • Designed for high stability in all conditions.
  • Lightweight but strong design, made from steel and aluminium.
  • Strong protection against salt on the steel parts through galvanization and epoxy paint
  • Anodized ribbed aluminium footboard with integrated anti-slip rubber strips
  • Illuminated corners glow in the dark at night
  • Easy to pull open from outside
  • Bolts quickly and easily to your chassis (Bolts included)
  • Heavy-duty springs keep the step retracted when travelling, even on rough outback roads

Specifications:

  • Tread Colour: Black
  • Weight 7.7kg
  • 12 Month Warranty
  • Load Rating 250kg

Dimensions:

  • Step Width: 545mm
  • Width of mounting hole centres: 515mm
  • Width of mounting frame: 545mm
  • Drop Height to the first tread: 150mm
  • Drop Height to the second tread: 280mm
  • Overall Drop Height: 320mm
  • Overall Height when closed: 255mm

SKU CSST550BD
Model # CSST550BD
Barcode # Does not apply
Brand Campsmart
Colour Black
Type Steps
Capacity 250kg
Item Width 1-year warranty
Item Width 545mm
Item Height 320mm
Item Length 570mm
Material Various
Country/Region of Manufacture China
Item Weight 7.7kg
MPN CSST550BD
Shipping Weight 8.5000kg
Shipping Width 0.415m
Shipping Height 0.270m
Shipping Length 0.580m
Shipping Cubic 0.064989000m3
Assembled Length 0.570m
Assembled Height 0.320m
Assembled Width 0.545m
Type New
Location Code 66D1-D2

Write a review


solid and sturdy item, well manufactured. If first step was a little lower would have been perfect, still a little high (for a shortie) to step onto it however saves carrying 2 x extra steps


Excellent product, much improved on my current caravan step.

1-year warranty

Key Features Include:

  • Designed for high stability in all conditions.
  • Lightweight but strong design, made from steel and aluminium.
  • Strong protection against salt on the steel parts through galvanization and epoxy paint
  • Anodized ribbed aluminium footboard with integrated anti-slip rubber strips
  • Illuminated corners glow in the dark at night
  • Easy to pull open from outside
  • Bolts quickly and easily to your chassis (Bolts included)
  • Heavy-duty springs keep the step retracted when travelling, even on rough outback roads

CSST545D

Specifications:

  • Tread Colour: Black
  • Weight 7.7kg
  • 12 Month Warranty
  • Load Rating 250kg

Dimensions:

  • Step Width: 545mm
  • Width of mounting hole centres: 515mm
  • Width of mounting frame: 545mm
  • Drop Height to the first tread: 150mm
  • Drop Height to the second tread: 280mm
  • Overall Drop Height: 320mm
  • Overall Height when closed: 255mm
