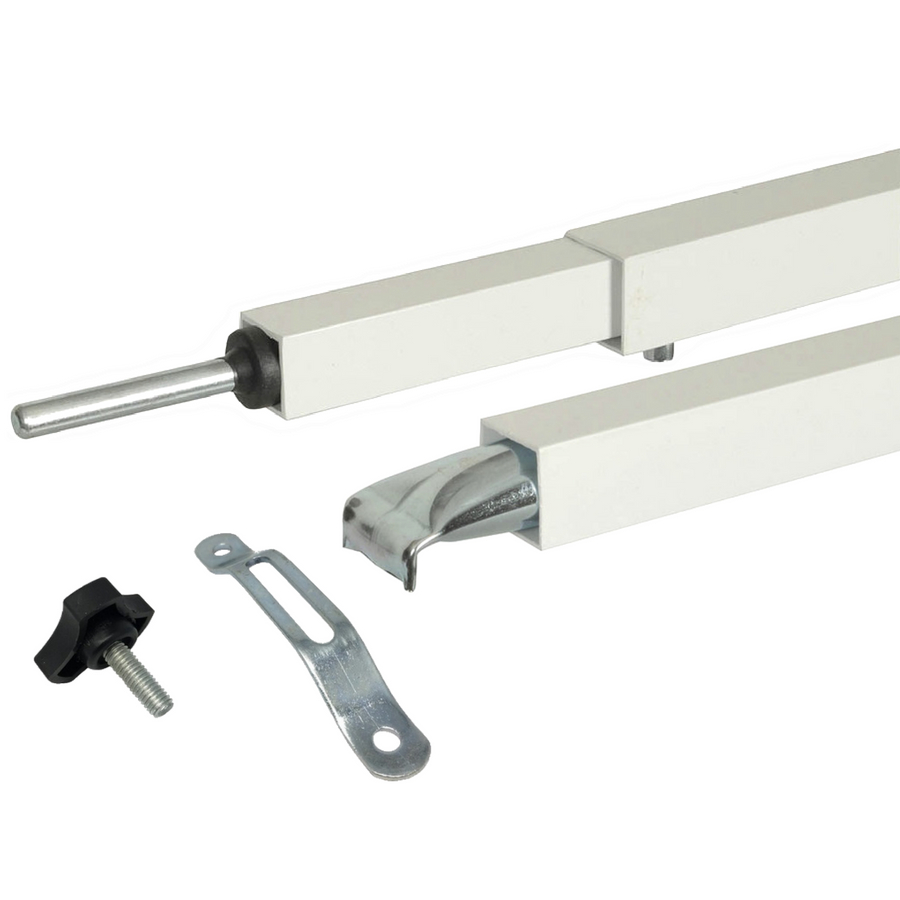

Slight Curved Caravan Awning Rafter

The slight curved awning rafters help you overcome the two common caravanning problems - wind flap and water pooling. Taking only moments to fit in place, this curved roof rafter is designed to give your awning canopy a gentle curve enabling rain to run off easier, as well as keeping the fabric tight and reducing wind flap. No more restless sleep due to wind flaps! For best results, we recommend using them with our anti-flap kit or deflappers

The rafter's slight curve is just enough to keep tension on the awning fabric for most awnings. They are simple to set up and if used close to the end of an awning can be utilised to hang Caravan Sunscreen End Walls. The telescoping style rafter extends up to 243cm and is suitable for Roll Out Awnings including Carefree, Dometic & A&E.

Features & Specifications:

  • Includes mounting bracket (screws not included);
  • Extends from 1.5m to 2.5m;
  • Curve is approx 50mm (+/- 10mm) when fully extended (See notes on curvature below);
  • Powdercoated white aluminium with a square profile;
  • Larger awnings would benefit from 2 or more rafters (We'd suggest 3 for awnings larger than 17').

Installation Details:

  1. Attach the bracket to the RV with 2 screws into the desired position;
  2. Extend the awning out to the fully opened position;
  3. Drill a hole in the awning tube at an appropriate height;
  4. File / de-burr the hole in the barrel to ensure no damage to the fabric occurs when closing.

Our Notes:

  • Curvature is measured when extended and includes the distance from a flat surface to the top of the rafter (note the rafter is approx. 25mm tall). Variation will occur depending on the amount of extension. A small amount of variation can also occur in production.
  • This rafter is not suitable for Box Awnings such as Fiamma. Please see our separately listed Fiamma Awning Rafters.



SKU RBE322
Model # RBE322
Barcode # Does not apply
Brand Campsmart
Colour White
Size Slight Curve
Style Roll Out Awning
Shipping Weight 1.1000kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 1.600m
Shipping Cubic 0.004000000m3
Type New
Location Code 38B1 & B2

Write a review


Very happy with the curved awning rafter will tell my family And friends the service was fast thankyou so much


A good product, would have been easy to install except that no screws were supplied with the brackets. Disappointing as I was not near a hardware store when I went to install it.

All items in our store are from reputable Australian suppliers and are covered by a 12-month  warranty for faults and defects.

Products must be used correctly and for the function they were designed for. Damage by customer misuse is not warrantable.

For full warranty information, visit our warranty page - Click here.

If you would like to submit a warranty claim, please submit a support ticket on our Customer Support Portal.

Click here to visit the portal

Due to the high incidence of online fraud, you will be required to provide proof of any warranty claims and may be required to return the item for assessment.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
