Quick Fit XF2 Folding Bike Rack 2 Bikes - 60KG Capacity
or 4 payments of $187.49 with
Learn more

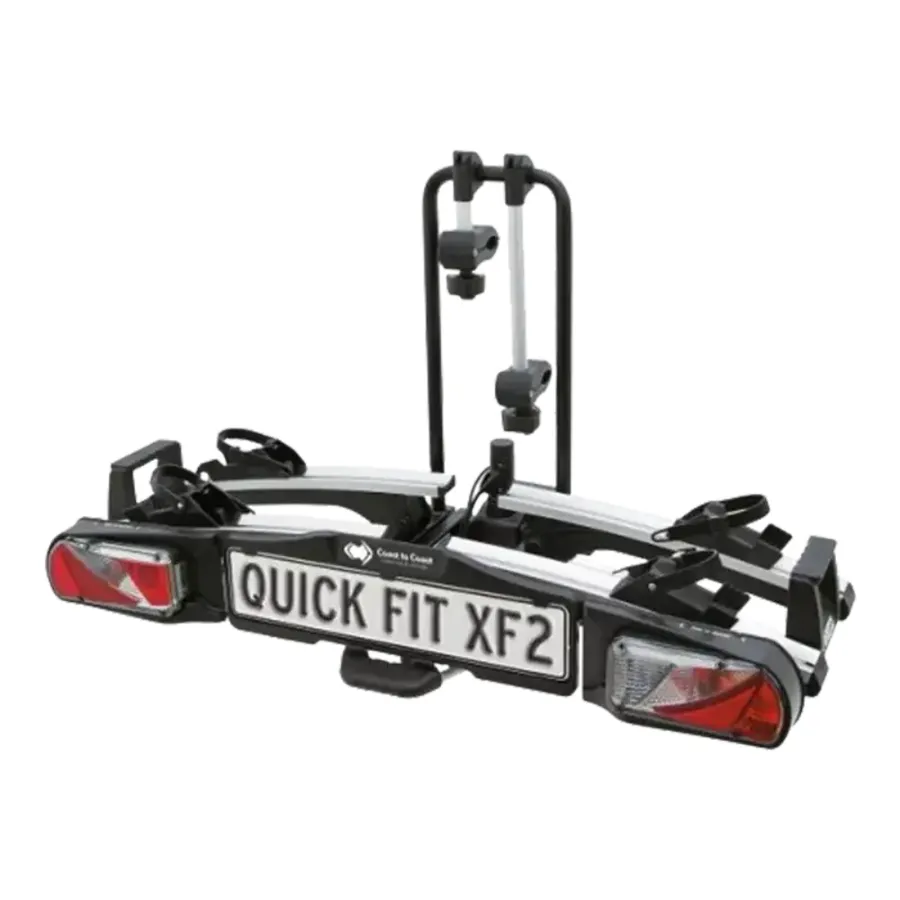

Quick Fit XF2 Folding Bike Rack
Product Code: 350-20102
Coast’s new Quick Fit Bike Racks have been designed to make it easier than ever to transport your bikes with you on your adventures!
Product Description

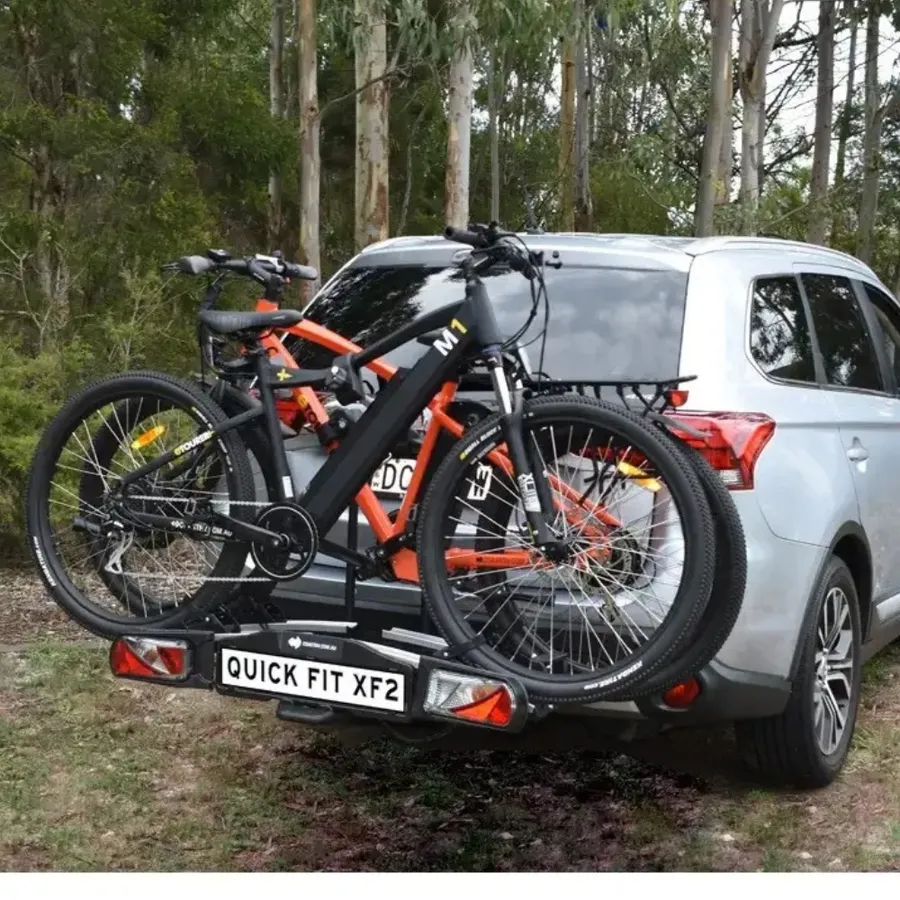

The Quick Fit XF2 is a safe and reliable bike carrier for the transportation of 2 bicycles.
* The maximum dimensions for any vehicle, including its load, are 2.5m in width and 4.3m in height. A vehicle fitted with a bicycle carrier, along with any bicycles must not exceed these limits. Rear-mounted bicycle carriers must also comply with rear overhang limits. Any rear overhang on a vehicle must not exceed 60% of the wheelbase or 3.7m, whichever is less.
Specifications:
- Can hold up to 2 bicycles
- Tiltable: Yes
- Foldable: Yes
- Weight approx: 17 kg
- Maximum load: 60 kg
- Bicycle frame diameter: Ø 22 - 75 mm*
- Wheel base bicycle max: 1250mm
- Bicycle tyre width max: 50 mm
- Wheel holder distance approx: 210 mm
- Colour: Black
- Material: Coated Steel & Aluminium
| SKU | 350-20102 |
| Model # | 350-20102 |
| Barcode # | Does not apply |
| Brand | Coast to Coast RV |
| Colour | Black and Grey |
| Type | Bike Rack |
| Capacity | 2 Bikes |
| Material | Aluminium and coated steel |
| Brand | Coast to Coast RV |
| Manufacturer Part Number | 350-20102 |
| Bike Frame Diameter | 22-75 mm |
| Bike Tyre Max Width | 50 mm |
| Dimensions Open (cm) | 115 (w) x 65 (h) x 56 (d) |
| Dimensions Folded (cm) | 31 (w) x 65 (h) x 56 (d) |
| Shipping Weight | 14.7000kg |
| Shipping Width | 0.730m |
| Shipping Height | 0.320m |
| Shipping Length | 0.600m |
| Shipping Cubic | 0.140160000m3 |
| Unit Of Measure | ea |
| Assembled Length | 0.560m |
| Assembled Height | 0.650m |
| Assembled Width | 1.150m |
| Type | new |
| Location Code | TBA |
Help other users shop smarter by writing reviews for products you have purchased.
All items in our store are from reputable Australian suppliers and are covered by a 12-month warranty for faults and defects.
Features
- Suitable for almost all tow bars, and fits all bicycles (also e-bikes) and wheel dimensions

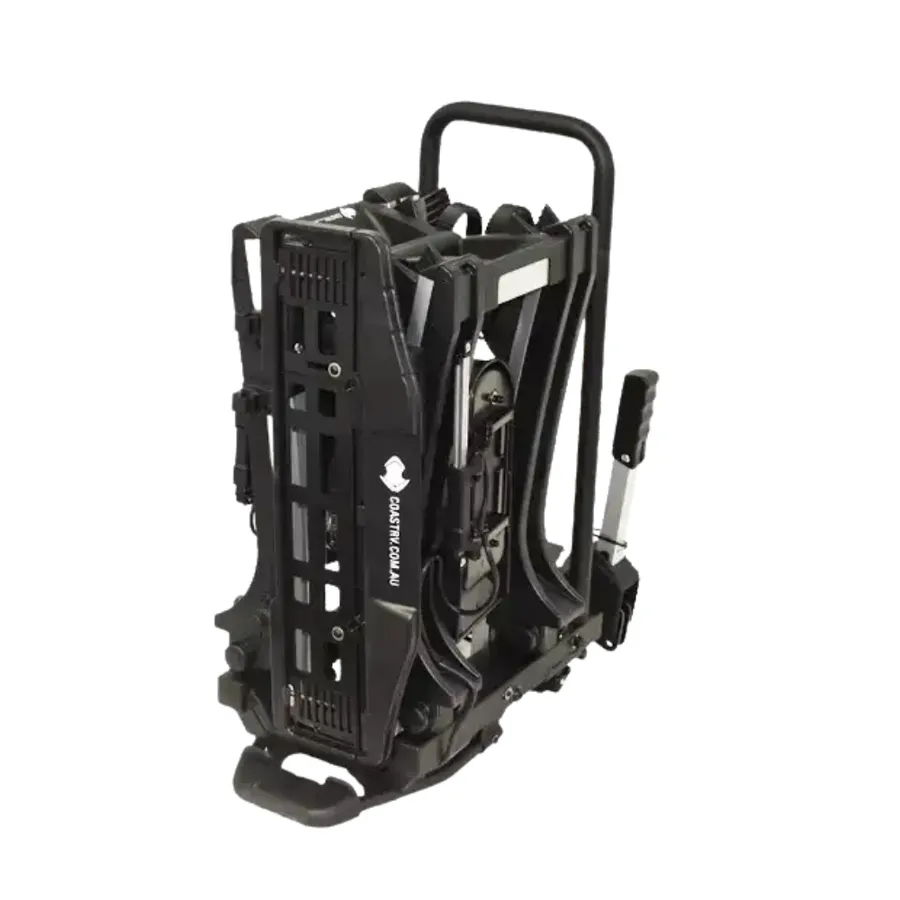

- Its ingenious folding system makes it easy to carry and store
- Extremely easy and quick fitting onto the tow bar with the patented quick connector
- Your boot is always accessible thanks to the easy to use tilt mechanism
- The bicycles are held in wide, stable aluminium wheel holders
- Flexible lockable and removable Quick Fit frame holders
- Storage bag included
- Connects to your lighting via a 7 plug
- Immediate usable from the carton.
- The bike carrier can be secured with the lock on quick connector
- In combination with the ride-on ramp (350-20120) you can even more easily manoeuvre your bicycle onto the bike carrier
Specifications:
- Can hold up to 2 bicycles
- Tiltable: Yes
- Foldable: Yes
- Weight approx: 17 kg
- Maximum load: 60 kg
- Bicycle frame diameter: Ø 22 - 75 mm*
- Wheel base bicycle max: 1250mm
- Bicycle tyre width max: 50 mm
- Wheel holder distance approx: 210 mm
- Colour: Black
- Material: Coated Steel & Aluminium
