Supex Awning Rafter Acute Curved (Pack of 2) - Black

Suitable for most caravan and RV roll out awnings, including Carefree, Dometic & A&E, this supex awning rafter is curved and used to keep the vinyl roof from sagging, ensuring 100% water run-off as well as keeping the fabric tight and reducing wind flap.

Did you know awning damage is the most common type of insurance claim within the RV industry? Curved Roof Rafters were introduced to help overcome these two common problems experienced by caravanners with roll out awnings:

  1. Wind Flapping. Wind flapping in the awning causes the caravan to shake, which can lead to restless sleep,p plus cause damage to the awning, frameset, roller and fabric.
  2. Water Pooling. Water pooling is a common cause of awning damage.

Newly released in a powder coated mat black finish, the Supex awning rafter 563VB is a high quality rafter with a rounded top surface to protect your awning from wear when the rafter is in place (unlike others in the market in this price range). In addition, the aluminium and powdercoat thickness is also greater than the other universal rafters that we've inspected, making this rafter our recommended choice.

NEW VERSION (V3): Supex recently released a new version which includes several improvements over the original version. These include:

  • The rafter is thicker and stronger while still being lightweight

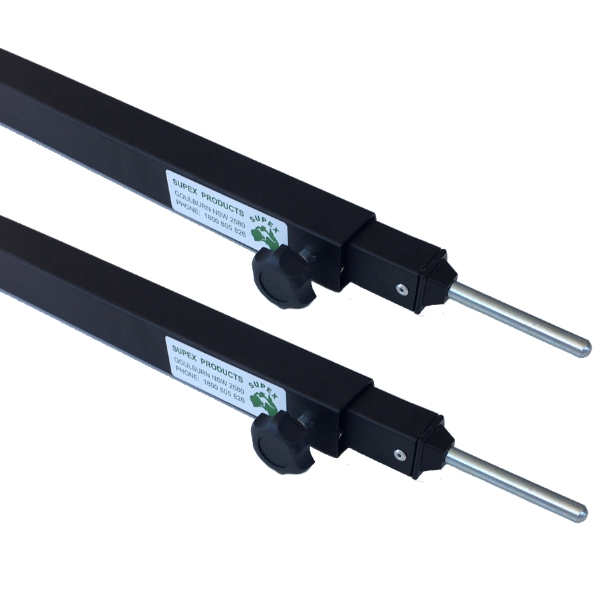

  • It features a larger round tightenning knob, which is less likely to break if dropped etc

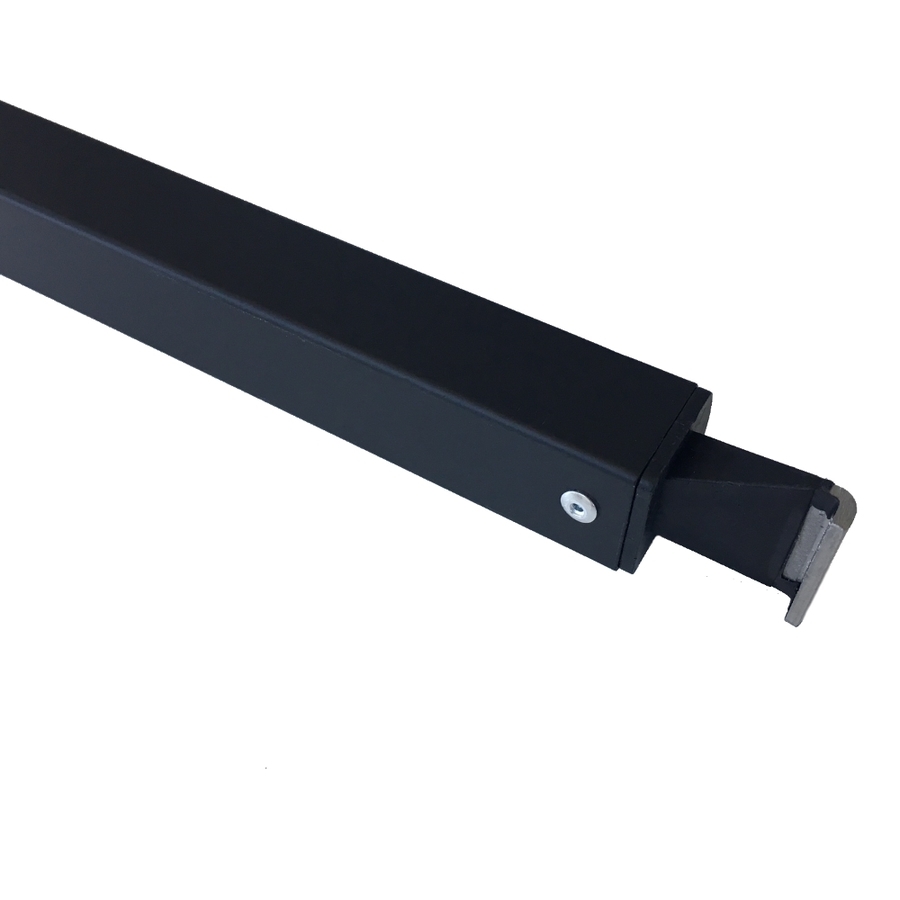

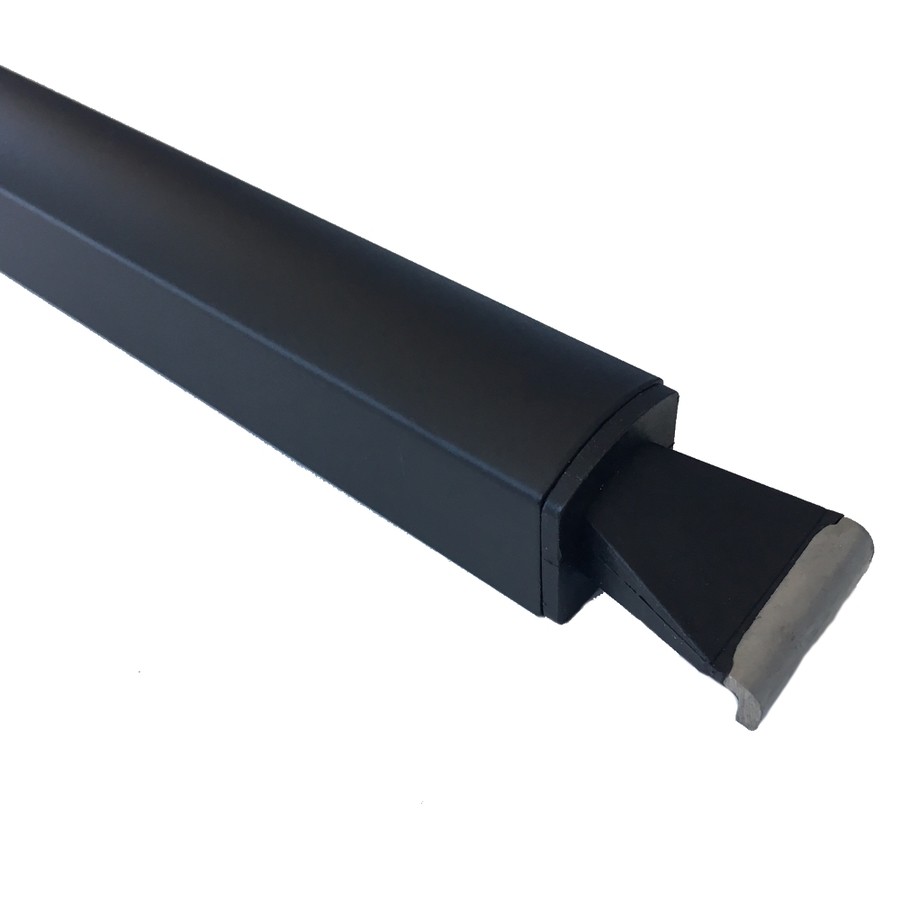

  • The bracket end is now stainless steel set within moulded plastic
  • The brackets included and are powdercoated black to match the rafter

Don't risk getting the old stock - grab the improved Supex awning rafter from Campsmart today!

Recommended Usage

The minimum recommended usage per awning size is outlined on the following table:

Awning Size Recommended
11' and under        1
12' - 16' 2
17' - 20' 3
21' and over 4



Specifications include:

  • 1.5 to 2.5m extension
  • Larger Acute Curve (approx. 100mm) to provide more tension and better facilitate run-off
  • 12 Month Warranty through Supex, a prominent Australian manufacturer of RV Parts & Accessories

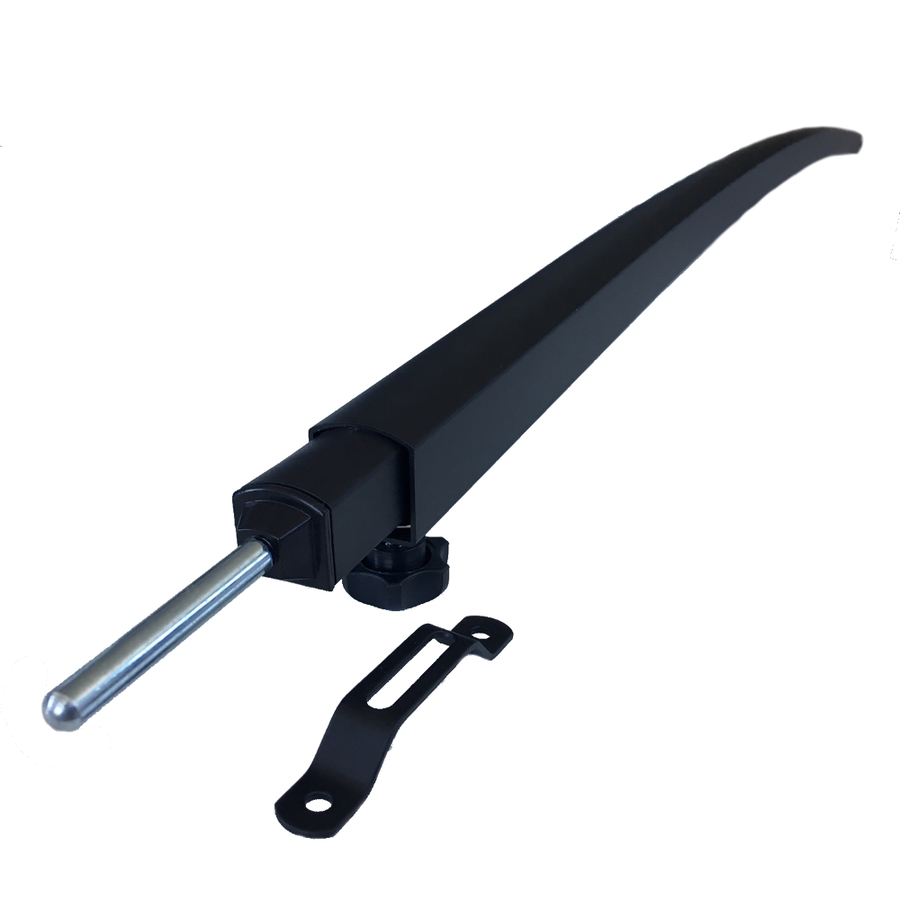

  • Wall bracket included (in matching powdercoated black)
  • Unique rounded finish on top to protect the awning fabric from wear
  • Lightweight and durable aluminium
  • Powder coated mat black
  • 2x Awning rafters included

Installation Details:

  1. Attach the bracket to the RV with 2 screws into the desired position
  2. Extend the awning out to the fully opened position making sure the key way is facing down
  3. Drill a hole in the awning tube at an appropriate height
  4. File / de-burr the hole in the barrel to ensure no damage to the fabric occurs when closing

Our Notes:

  • This Supex awning rafter is not suitable for Box Awnings such as Fiamma. Please see our separately listed Fiamma Awning Rafters.
  • The new black rafters look great and will nicely match black awning framework and off-road RVs with black checker plating/decals etc.

See our full range of Supex products.

SKU 563VABX2
Model # 563VABX2
Barcode # Does not apply
Brand Supex
Colour Black
Shipping Weight 2.7600kg
Shipping Width 0.080m
Shipping Height 0.080m
Shipping Length 1.600m
Shipping Cubic 0.010240000m3
Type New
Location Code 36D1&2

Help other users shop smarter by writing reviews for products you have purchased.

Write a review

All items in our store are from reputable Australian suppliers and are covered by a 12-month  warranty for faults and defects.

Products must be used correctly and for the function they were designed for. Damage by customer misuse is not warrantable.

For full warranty information, visit our warranty page - Click here.

If you would like to submit a warranty claim, please submit a support ticket on our Customer Support Portal.

Click here to visit the portal

Due to the high incidence of online fraud, you will be required to provide proof of any warranty claims and may be required to return the item for assessment.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.





NEW VERSION (V3): Supex recently released a new version which includes a number of improvements over the original version. These include:

  • The rafter is thicker and stronger while still being lightweight
  • It features a larger round tightenning knob, which is less likely to break if dropped etc
  • The bracket end is now stainless steel set within moulded plastic
  • The brackets included and are powdercoated black to match the rafter

Specifications include:

  • 1.5 to 2.5m extension
  • Larger Acute Curve (approx. 100mm) to provide more tension and better facilitate run-off
  • 12 Month Warranty through Supex, a prominent Australian manufacturer of RV Parts & Accessories
  • Wall bracket included (in matching powdercoated black)
  • Unique rounded finish on top to protect the awning fabric from wear
  • Lightweight and durable aluminium
  • Powder coated mat black
  • 2x Awning rafters included
