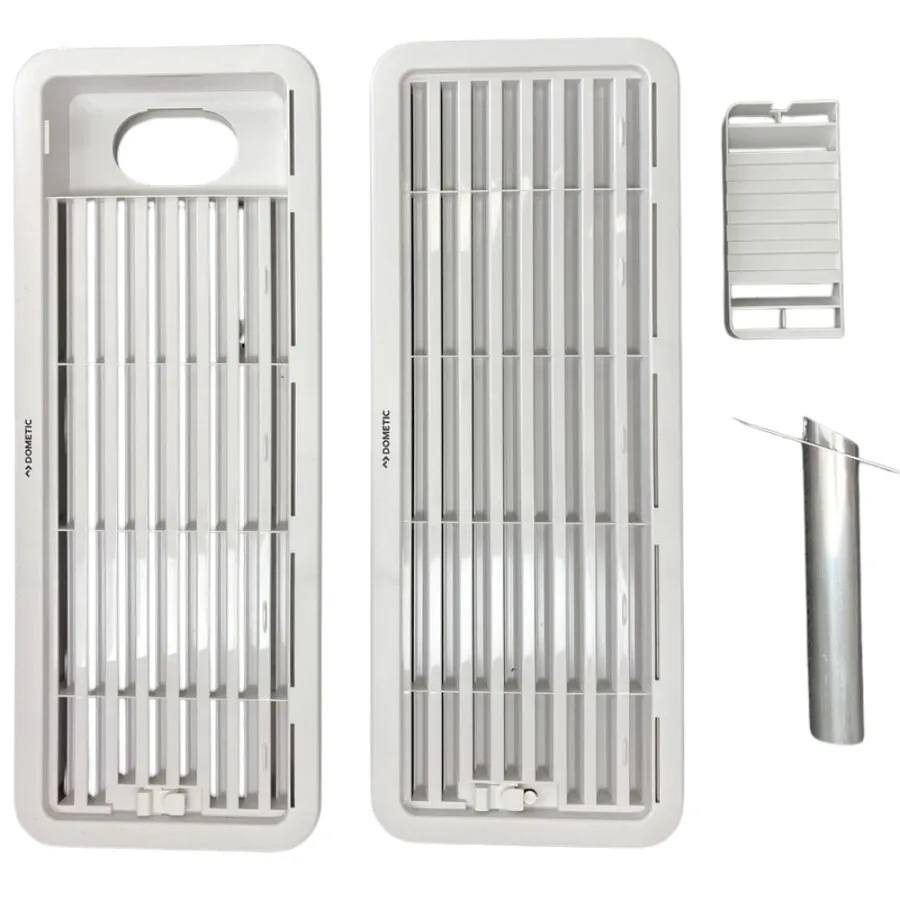

The advanced ventilation system A1625 is designed for significantly better cooling performance of the Dometic absorption refrigerator. It features 2 mounting frames that are permanently installed onto the outer wall of your RV, plus easily removable ventilation grills that differ from the top and bottom. The bottom grill lets fresh cool air in, while the top vent has 2 outlet sections. The small section to the right takes the exhaust gases/heat directly outside and the larger section takes the warmed-up air that flows past the fridge fins to the outside. Kit contains:

  • Upper ventilation system: includes mounting frame (R1640U) and ventilation grill (A1625U)
  • Lower ventilation system: includes mounting frame (R1650L) and ventilation grill (R1635L)

Features:

  • Enhanced Cooling Performance: Specifically designed to improve the efficiency of Dometic absorption refrigerators, keeping food and beverages colder for longer.

  • Two Mounting Frames: Includes separate upper and lower mounting frames for easy installation on the outer wall of your RV.

  • Removable Ventilation Grills: Features easily removable grills for straightforward cleaning and maintenance.

  • Optimized Airflow Design: The bottom grill allows fresh, cool air to enter, while the upper vent has two outlet sections—one for exhaust gases and heat, and another for expelling warmed air from the refrigerator fins.

  • Durable Construction: Built with robust materials to withstand the rigors of travel and outdoor use.

  • Compatibility: Suitable for Dometic 3-way refrigerators up to 100 liters, making it a versatile addition to your RV setup.

  • User-Friendly Installation: Designed for easy installation, with clear-cut cut-out sizes for a precise fit.

  • Improved Energy Efficiency: Helps reduce energy consumption by maintaining optimal refrigerator temperatures, allowing for longer trips without the need for frequent cooling system adjustments.

Specifications

  • Each Vent Cut Out Size: 450(L) x 156(H)
  • Each Vent Overall Size: 478(L) x 186 (H)
  • Fixing Screws Not Supplied
  • Suitable for Dometic 3-way fridges up to 100L

Notes

  • In order to ensure warranty requirements on your Dometic absorption refrigerators, this event kit must be used.
  • This varies slightly from the earlier 2008 model vent.

SKU 700-03540
Model # AS1625-KIT
Barcode # Does not apply
Brand Dometic
Colour Grey
Type Upright Fridge Install Accessories
Material Various
Shipping Weight 1.0400kg
Shipping Width 0.170m
Shipping Height 0.240m
Shipping Length 0.520m
Shipping Cubic 0.021216000m3
Assembled Length 0.478m
Assembled Height 0.020m
Assembled Width 0.186m
Type New
Location Code 81E2
