Take your bikes wherever the road leads with the Coast RV X2 Caravan Bike Rack.

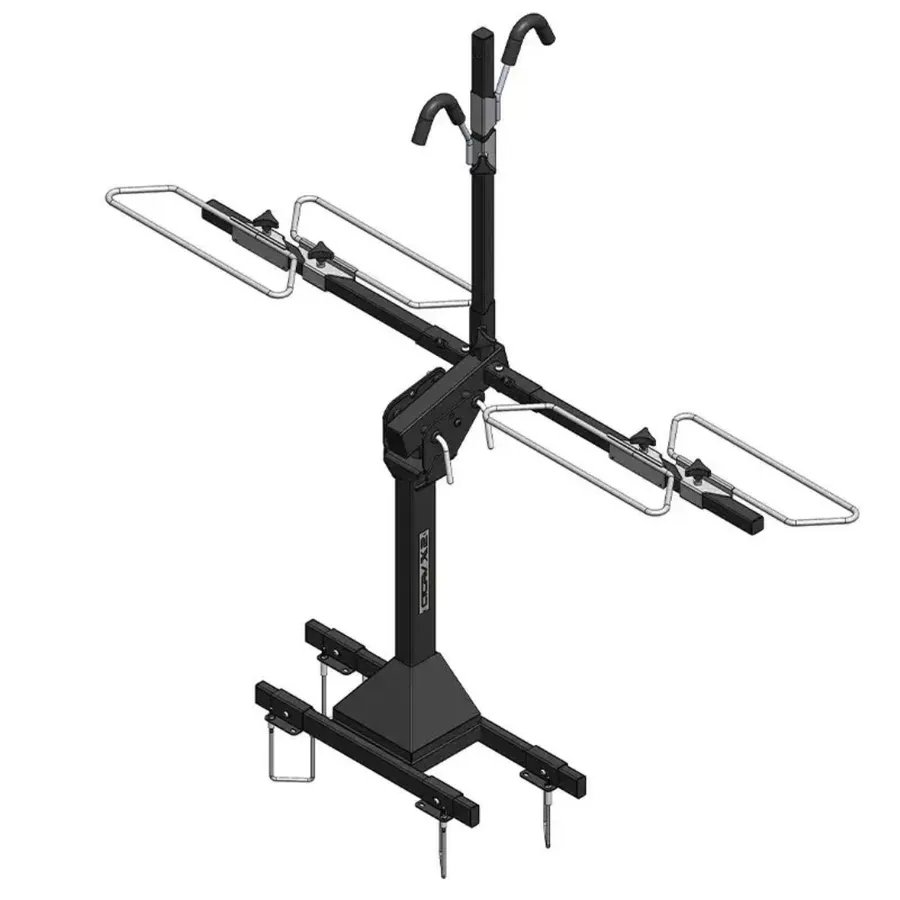

Purpose-built for caravan A-frame drawbars, this heavy-duty rack safely carries two bikes while keeping your gas bottles, toolboxes, and drawbar storage accessible. Its elevated, pivoting design makes loading easy and accessing gear hassle-free—perfect for touring and extended trips.
Take your caravan adventures to the next level with our Two-Bike Elevated Caravan Rack — engineered for strength, safety, and ease of use.

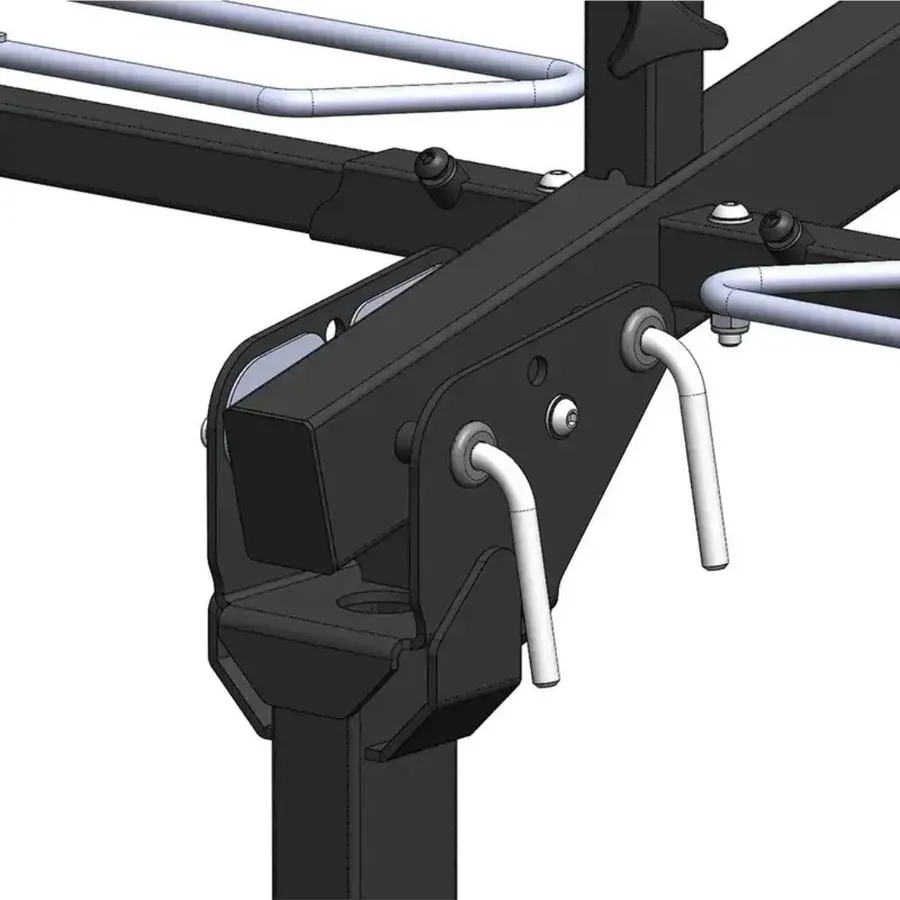

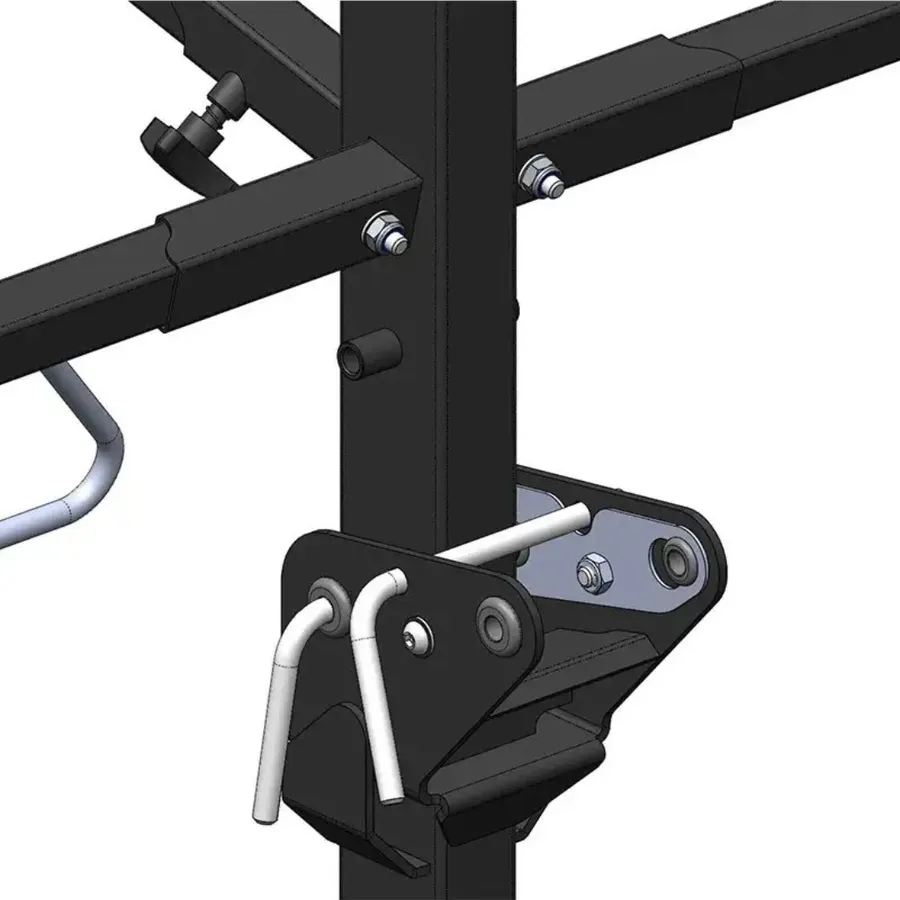

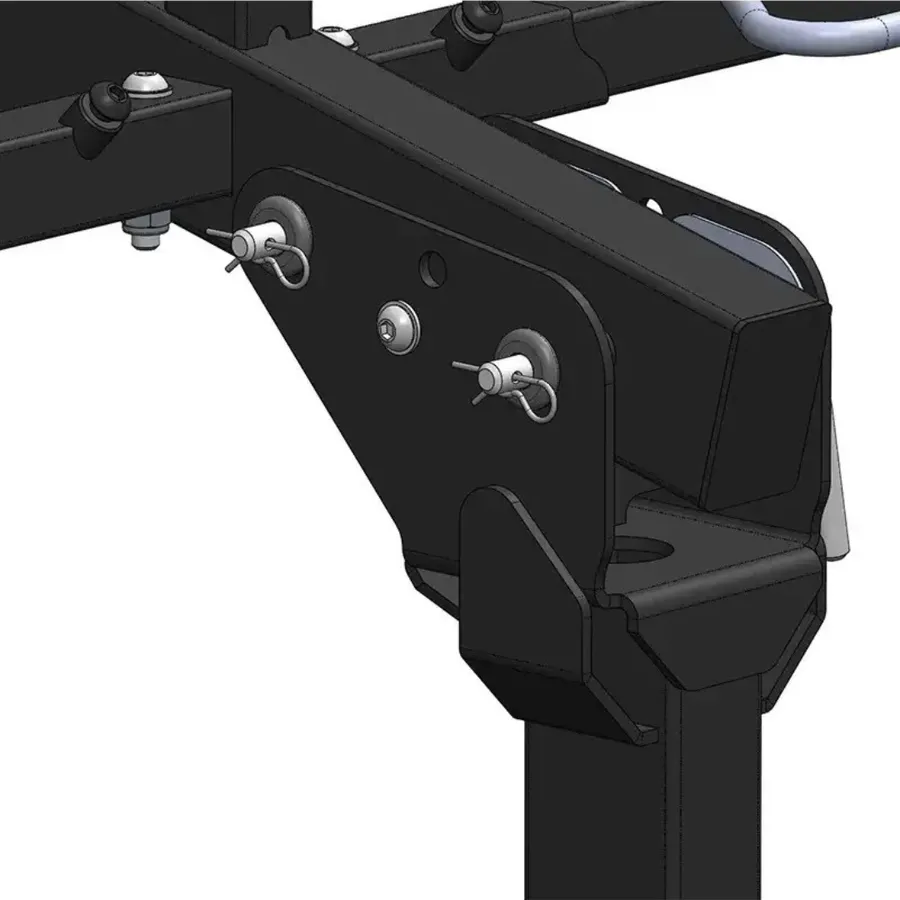

Designed specifically for caravan drawbars, this rack features a pivoting design that allows you to safely and effortlessly access your gas bottles, toolboxes, and other front-mounted equipment without removing the bikes. Built from heavy-duty, high-grade Extra 400 steel, it offers superior durability and long-lasting performance, even in tough outdoor conditions.
Finished with a zinc-plated and Textura powder-coated surface for exceptional corrosion resistance, this rack is built to withstand Australia’s harsh weather. It supports wheel sizes from 20” to 29” and can carry up to two bikes with a combined load of 60kg.
Certified to ISO 9001 quality standards and manufactured to AS/NZS1554.1 welding specifications, this rack ensures the highest level of safety and reliability. All hardware and fitting instructions are included for a straightforward installation.
Key Features:
-
Pivoting design – easy access to gas bottles, toolboxes & drawbar equipment
-
Heavy-duty Extra 400 steel construction
-
Zinc-plated & Textura powder-coated finish
-
Supports wheel sizes from 20” to 29”
-
60kg maximum load capacity
-
Two-bike elevated rack – total rack weight 30.7kg (all hardware included)
-
Certified quality – ISO 9001 & AS/NZS1554.1 welding standards
-
Easy installation with included hardware & instructions
Specifications:
Weight: 30.7Kg
Tyre Cradel Dimensions: 120mm x 435mm
| SKU | 350-20052 |
| Model # | 350-20052 |
| Barcode # | Does not apply |
| Brand | Coast to Coast RV |
| Colour | Black |
| Type | Bike Rack |
| Brand | Coast to Coast RV |
| Manufacturer Part Number | 350-20052 |
| Materials | Steel |
| Maximum Load | 60 kg |
| Mounting Location | Caravan A-frame drawbar |
| Shipping Weight | 30.7000kg |
| Shipping Width | 0.450m |
| Shipping Height | 0.250m |
| Shipping Length | 0.550m |
| Shipping Cubic | 0.061875000m3 |
| Unit Of Measure | ea |
| Assembled Length | 0.435m |
| Assembled Height | 0.120m |
| Assembled Width | 0.435m |
| Type | new |
| Location Code | TBA |
Help other users shop smarter by writing reviews for products you have purchased.
Features
- Designed specifically for caravan A-frame drawbars
- Securely carries 2 bikes
- Elevated rack design for easy access to drawbar fittings
- Pivoting function allows rack to rotate without removing bikes
- Heavy-duty Extra 400 high-grade steel construction
- Zinc plated and textured powder-coated for corrosion resistance
- Suitable for 20” to 29” wheel sizes
- 60 kg load capacity – ideal for modern touring bikes
- Welded to AS/NZS 1554.1 standard
- ISO 9001 certified manufacturing
Specifications
- Bike Capacity: 2 bikes
- Maximum Load: 60 kg
- Wheel Size Compatibility: 20” – 29”
- Material: Extra 400 high-grade steel
- Finish: Zinc plated with Textura powder coating
- Rack Weight: 30.7 kg (including hardware)
- Mounting Location: Caravan A-frame drawbar
