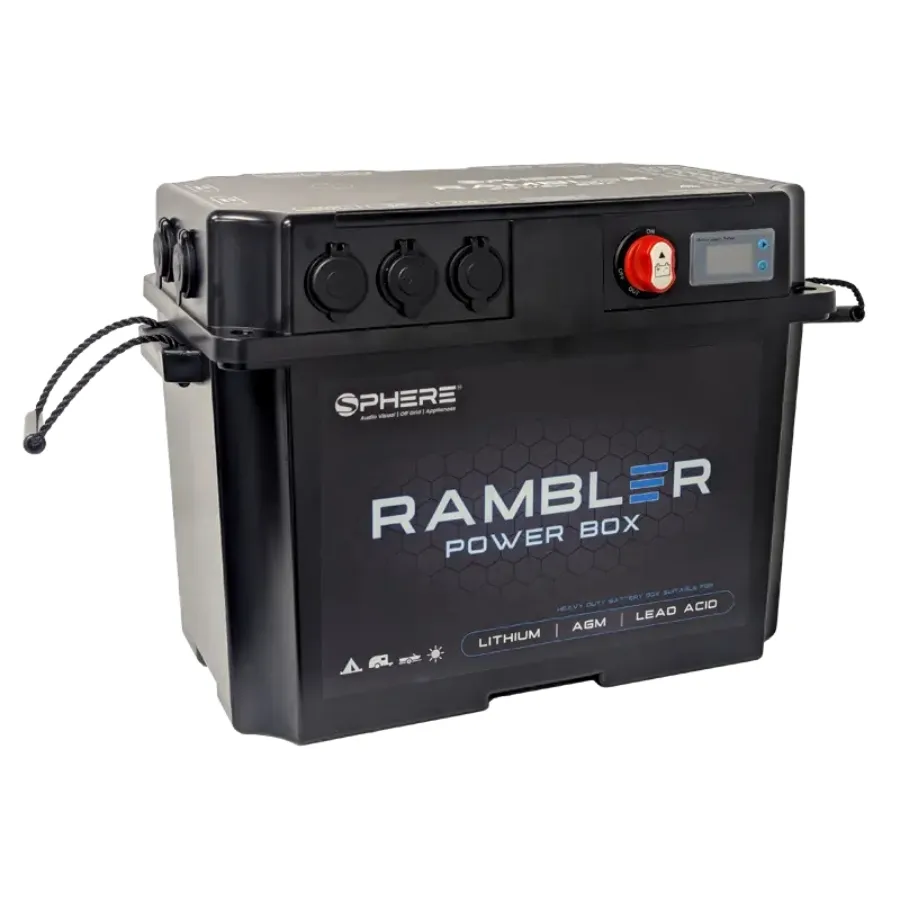

Sphere Rambler Battery Box with Power Accessory Ports & Covers

Dimensions: 455mm (L) x 265mm (W) x 325mm (H)
Product Code: 500-02000

Power your adventures with confidence using the Sphere Rambler Battery Box – a rugged, all-in-one 12V power solution designed for serious off-grid setups. Whether you’re exploring remote tracks, camping off the beaten path, or operating a mobile workstation, the Rambler gives you the flexibility to store, charge, and distribute power safely and efficiently.

Designed to support a wide range of battery types, including Lithium, AGM, Gel, and Lead Acid, this unit delivers a reliable power hub for your RV, 4WD, or off-grid project. With an extensive range of power outlets, built-in safety mechanisms, and support for high-draw equipment, the Rambler is made for life on the move.

What’s in the Box

  • 1 x Sphere Rambler Battery Box (case & lid)

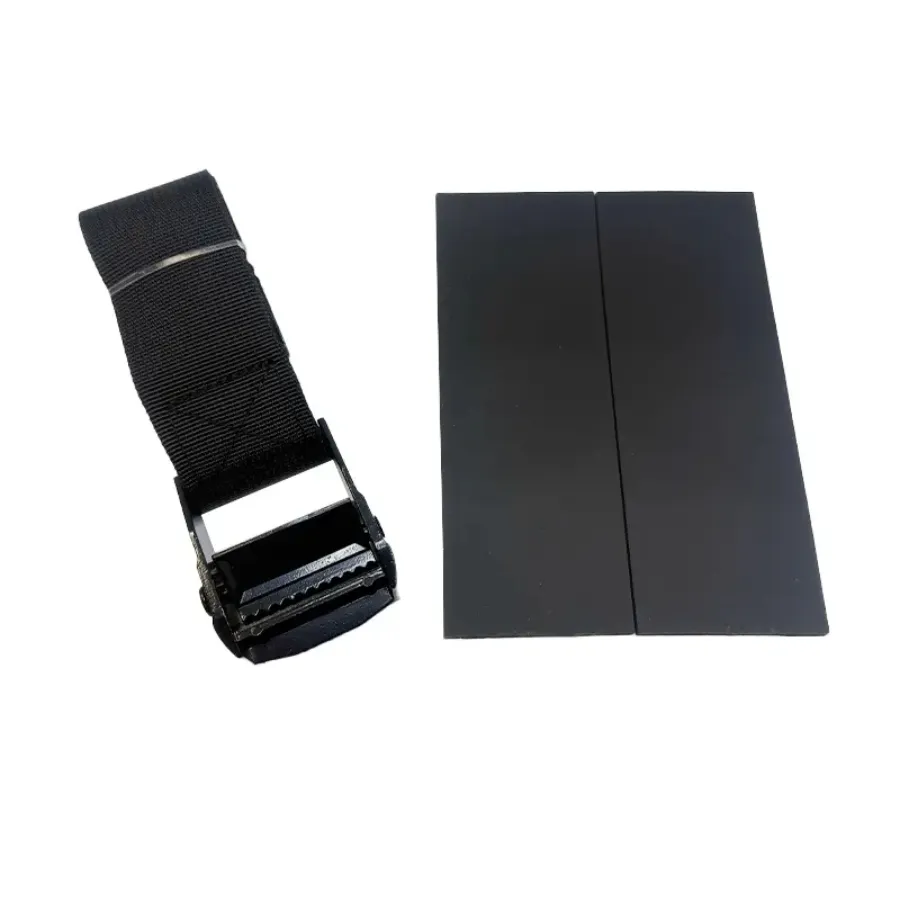

  • 1 x Internal battery tie-down strap
  • 1 x Tie-down bracket with mounting hardware
  • 1 x Set of non-slip base pads

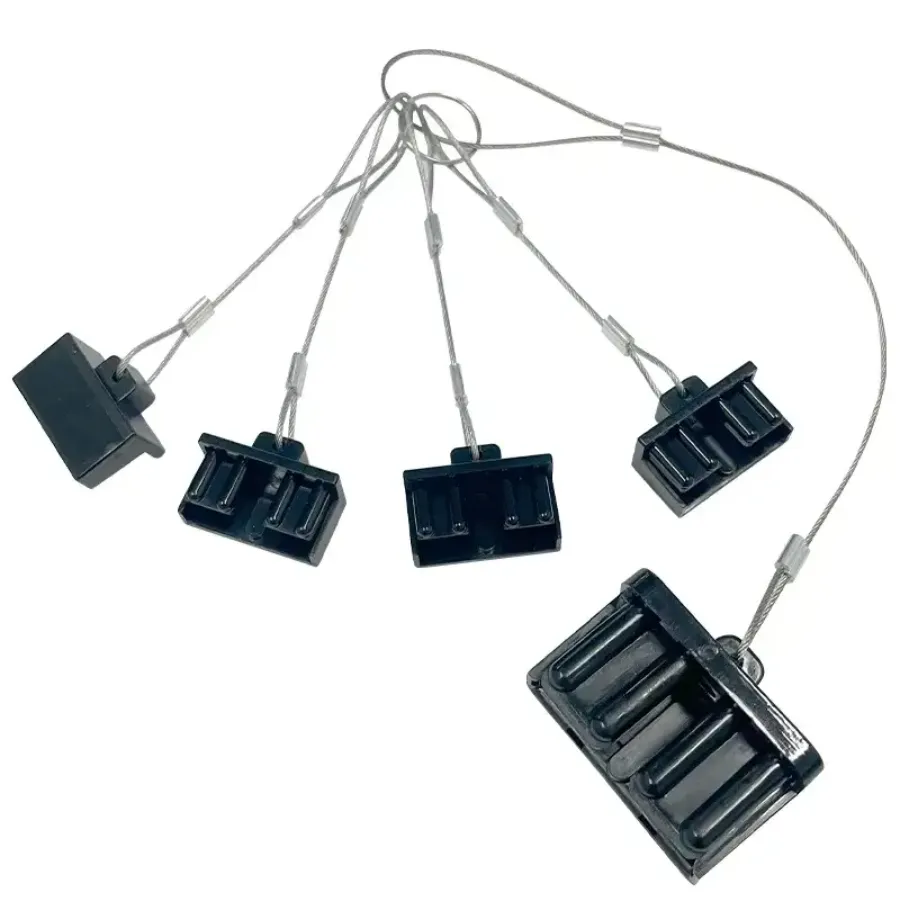

  • 1 x 5-piece Anderson plug dust cover set

Ideal For

  • 4WD touring and overlanding setups
  • Caravan and RV use
  • Off-grid solar systems, solar, alternator, or AC chargers
  • Camping and outdoor adventures
  • Mobile workstations or tradie setups
  • Emergency backup power systems

The Sphere Rambler Battery Box delivers the flexibility, durability, and smart design features you need to stay powered up in the harshest conditions. Whether you're running a fridge, recharging devices, or powering high-draw equipment, the Rambler is built to keep you going, wherever the road leads.



SKU 500-02000
Model # 500-02000
Barcode # Does not apply
Brand Sphere
Model 500-02000
Brand Sphere
External Dimensions (mm) 455(L) x 265(W) x 325(H)
Maximum Battery Dimensions (mm) 340(L) x 185(W) x 235(H) with silicone mat
Maximum Battery Weight 35kg
Shipping Weight 35.0000kg
Shipping Width 0.300m
Shipping Height 0.350m
Shipping Length 0.500m
Shipping Cubic 0.052500000m3
Assembled Length 0.455m
Assembled Height 0.325m
Assembled Width 0.265m
Type New
Location Code TBA

Help other users shop smarter by writing reviews for products you have purchased.

Write a review

All items in our store are from reputable Australian suppliers and are covered by a 12-month  warranty for faults and defects.

Products must be used correctly and for the function they were designed for. Damage by customer misuse is not warrantable.

For full warranty information, visit our warranty page - Click here.

If you would like to submit a warranty claim, please submit a support ticket on our Customer Support Portal.

Click here to visit the portal

Due to the high incidence of online fraud, you will be required to provide proof of any warranty claims and may be required to return the item for assessment.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Key Features & Benefits

  • Wide Battery Compatibility - Accepts Lithium, AGM, Gel, and Lead Acid batteries, making it suitable for most modern 12V battery systems.

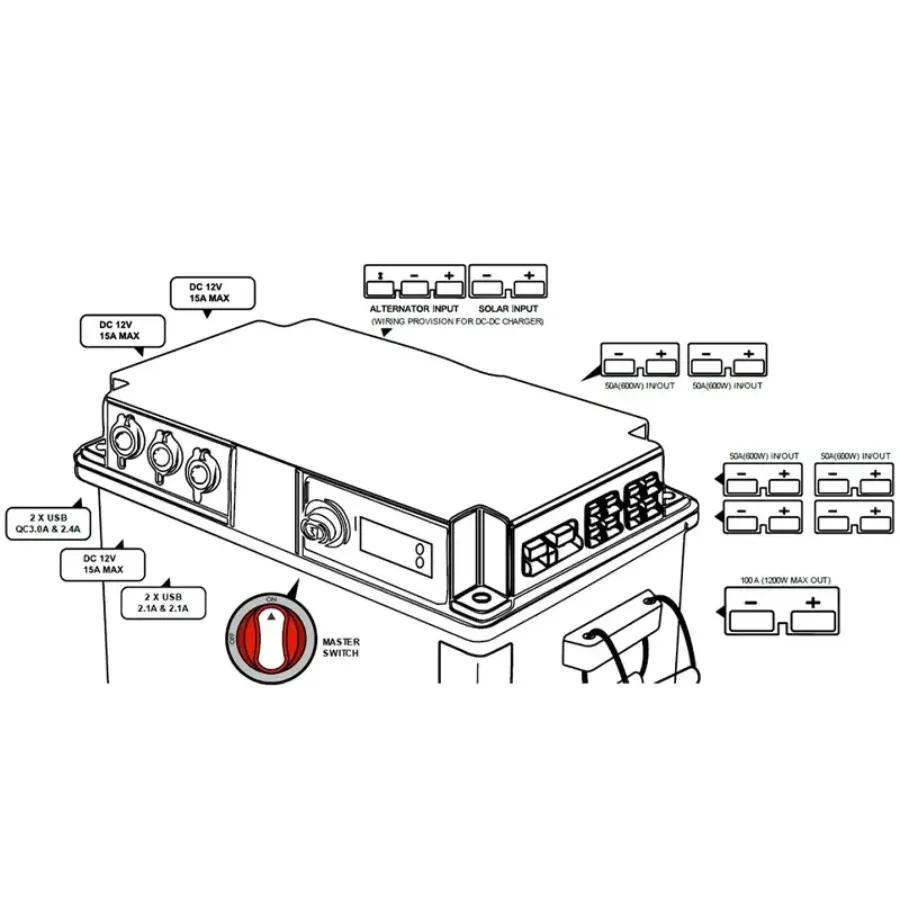

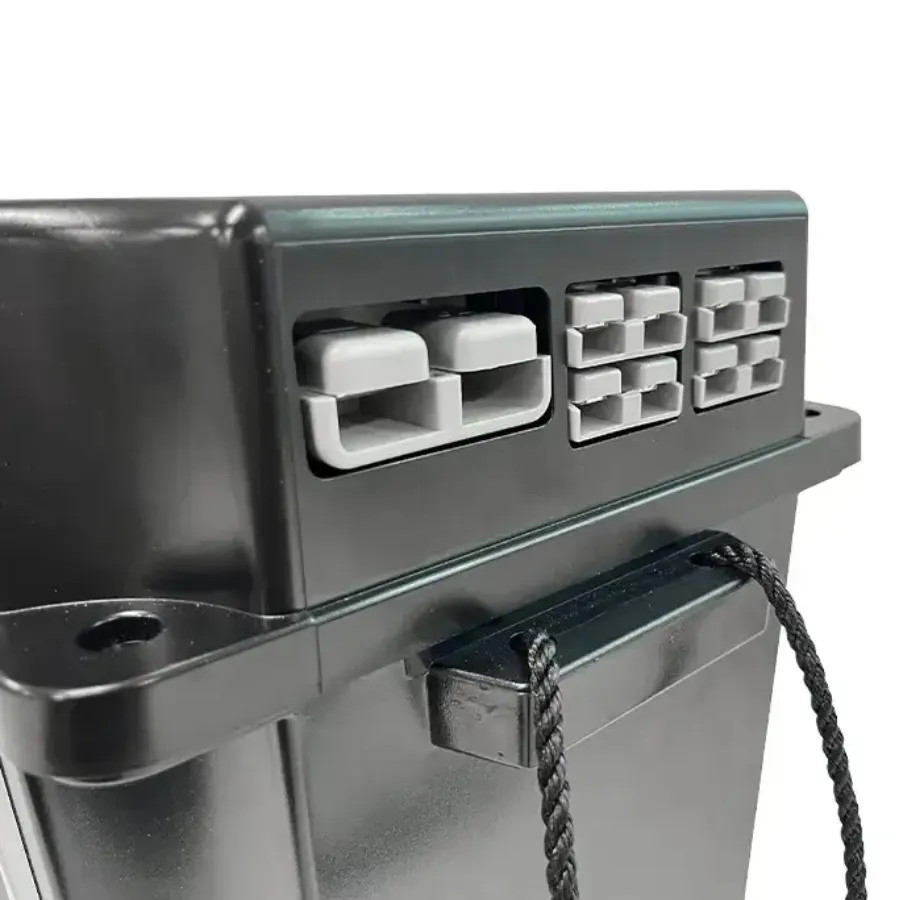

  • Versatile Output Options - Equipped with 6 Anderson plug outputs, 3 cigarette lighter sockets, and 4 USB ports – including a QC3.0 fast-charge port – for powering everything from lights and fridges to phones and tools.

  • High Current Capability - A dedicated 175A Anderson plug provides a stable, high-output connection for running inverters or other power-hungry equipment.

  • Built-in Display Monitor - The integrated multi-function digital gauge displays voltage, battery capacity, and temperature, keeping you informed at a glance.

  • DC-DC Charger Ready - Prewired for seamless integration of a DC-DC charger (sold separately), saving you installation time and effort.

  • Comprehensive Protection - Built-in fuse protection and a circuit breaker help safeguard your battery and connected devices from overloads or faults.

  • Secure and Stable Mounting - Includes an internal tie-down strap and a non-slip base pad set to keep your battery secure, even on rough terrain.

  • Multiple Charging Methods - Compatible with solar panels, vehicle alternators, and AC chargers – giving you the flexibility to keep your power topped up in any environment.

Technical Specifications

  • Product Dimensions: 455mm (L) x 265mm (W) x 325mm (H)

  • Rated Voltage: 12V DC

  • Maximum Output: 100A (1200W)

  • High-Current Output Port: 1 x 175A Anderson plug

  • Output Ports:

    • 6 x Standard Anderson plug outputs

    • 3 x 12V cigarette lighter sockets

    • 4 x USB ports (1 x Quick Charge 3.0)

  • Display Readout: Voltage, battery capacity (%) and internal temperature

  • Material: Tough, impact-resistant ABS plastic housing

  • Protection:

    • Built-in resettable circuit breaker

    • Fuse protection for each output

    • Dust covers for Anderson plugs (included)
